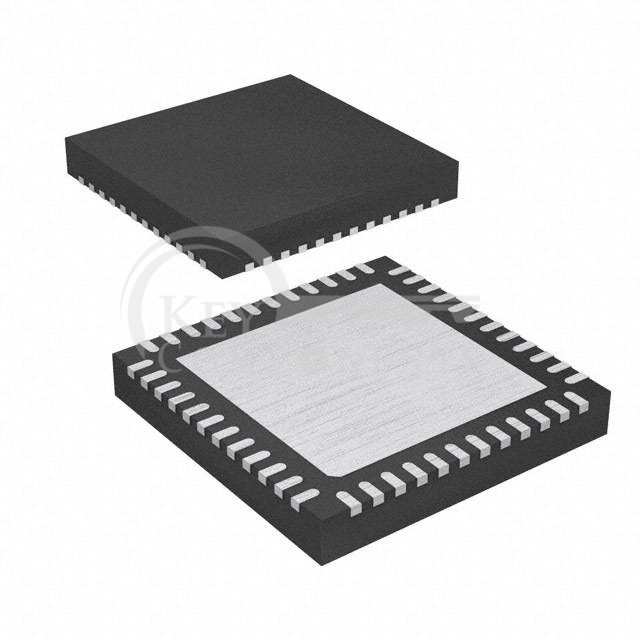

MC9S08JM32CGT
| Manufacturer Part | MC9S08JM32CGT |
|---|---|
| Manufacturer | NXP Semiconductors |
| Description | S08JM 8-BIT MCU S08 CORE |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Core Processor: | HCS08 |
| Core Size: | 8-Bit |
| Speed: | 48MHz |
| Connectivity: | I²C, LINbus, SCI, SPI, USB |
| Peripherals: | LVD, POR, PWM, WDT |
| Number of I/O: | 37 |
| Program Memory Size: | 32KB (32K x 8) |
| Program Memory Type: | FLASH |
| EEPROM Size: | - |
| RAM Size: | 2K x 8 |
| Voltage - Supply (Vcc/Vdd): | 2.7V ~ 5.5V |
| Data Converters: | A/D 8x12b SAR |
| Oscillator Type: | External, Internal |
| Operating Temperature: | -40°C ~ 85°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | 48-VFQFN Exposed Pad |
| Supplier Device Package: | 48-QFN (7x7) |
