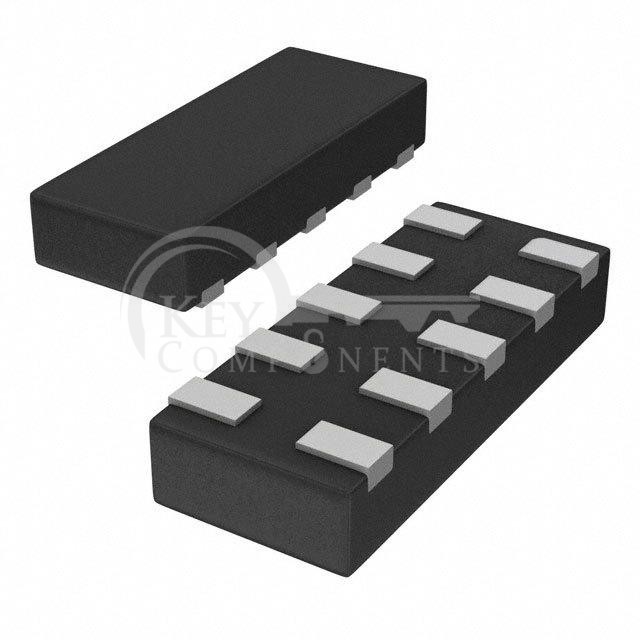

PUSB3F96X
| Manufacturer Part | PUSB3F96X |
|---|---|
| Manufacturer | Nexperia USA Inc. |
| Description | TVS DIODE 5.5VWM 4.6VC DFN2510A |
| Category | Circuit Protection |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Steering (Rail to Rail) |
| Unidirectional Channels: | 4 |
| Bidirectional Channels: | - |
| Voltage - Reverse Standoff (Typ): | 5.5V (Max) |
| Voltage - Breakdown (Min): | 6V |
| Voltage - Clamping (Max) @ Ipp: | 4.6V (Typ) |
| Current - Peak Pulse (10/1000µs): | 5.2A (8/20µs) |
| Power - Peak Pulse: | - |
| Power Line Protection: | Yes |
| Applications: | HDMI |
| Capacitance @ Frequency: | - |
| Operating Temperature: | -40°C ~ 85°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | 10-XFDFN |
| Supplier Device Package: | DFN2510A-10 |
