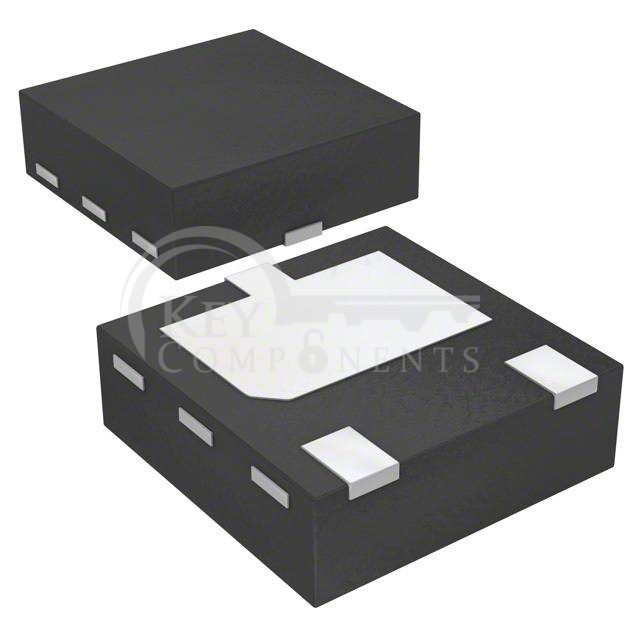

PTVS7V5U1UPAZ

PTVS7V5U1UPAZ

Manufacturer Part PTVS7V5U1UPAZ
Manufacturer Nexperia USA Inc.
Description TVS DIODE 7.5VWM 12.9VC 3HUSON
Category Circuit Protection
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Type:Zener
Unidirectional Channels:1
Bidirectional Channels:-
Voltage - Reverse Standoff (Typ):7.5V (Max)
Voltage - Breakdown (Min):8.33V
Voltage - Clamping (Max) @ Ipp:12.9V
Current - Peak Pulse (10/1000µs):23.3A
Power - Peak Pulse:300W
Power Line Protection:No
Applications:Automotive
Capacitance @ Frequency:-
Operating Temperature:-55°C ~ 150°C (TA)
Mounting Type:Surface Mount
Package / Case:3-PowerUDFN
Supplier Device Package:3-HUSON (2x2)
