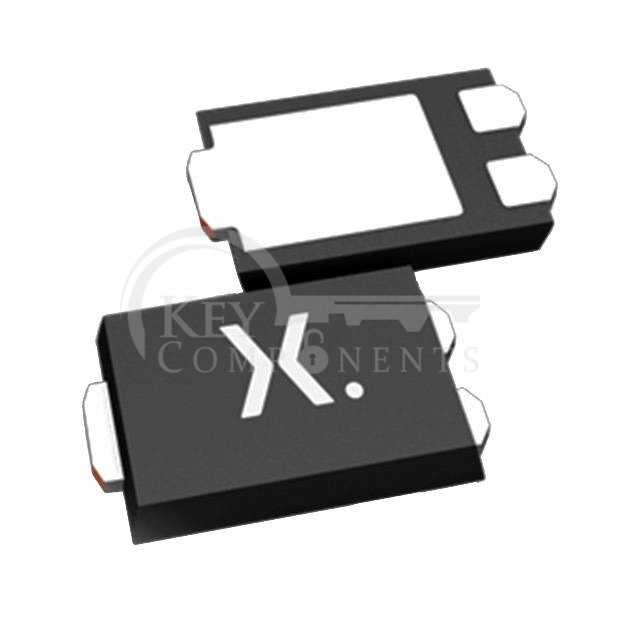

PMEG100T050ELPEZ
| Manufacturer Part | PMEG100T050ELPEZ |
|---|---|
| Manufacturer | Nexperia USA Inc. |
| Description | DIODE SCHOTTKY 100V 5A CFP15B |
| Category | Discrete Semiconductor Products |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Diode Type: | Schottky |
| Voltage - DC Reverse (Vr) (Max): | 100 V |
| Current - Average Rectified (Io): | 5A |
| Voltage - Forward (Vf) (Max) @ If: | 810 mV @ 5 A |
| Speed: | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr): | 12 ns |
| Current - Reverse Leakage @ Vr: | 2.5 µA @ 100 V |
| Capacitance @ Vr, F: | 410pF @ 1V, 1MHz |
| Mounting Type: | Surface Mount |
| Package / Case: | TO-277, 3-PowerDFN |
| Supplier Device Package: | CFP15B |
| Operating Temperature - Junction: | 175°C |
Shipping
| Shipping Type | Ship Fee | Lead Time |
| DHL | $20.00-$40.00 (0.50 KG) | 2-5 days |
| Fedex | $20.00-$40.00 (0.50 KG) | 2-5 days |
| UPS | $20.00-$40.00 (0.50 KG) | 2-5 days |
| TNT | $20.00-$40.00 (0.50 KG) | 2-6 days |
| EMS | $20.00-$40.00 (0.50 KG) | 3-7 days |
| REGISTERED AIR MAIL | $2.5-$7 (0.50 KG) | 20-35 days |
Payment
| Payment method | Hand Fee |
| Telegraphic Transfer | charge US$30.00 banking fee. |
| Paypal | charge 4.0% service fee. |
| Credit Card | charge 4% service fee. |
| Western Union | charge US$0.00 banking fee. |
| Money Gram | charge US$0.00 banking fee. |
Guarantees
- We provide 90 days warranty;
- The Pre-Shipment Inspection (PSI) will be applied;
- If some of the items you received aren't of perfect quality, we would responsibly arrange your refund or replacement. But the items must remain their original condition;
- If you don't receive the item in 25 days, just let us know, a new package or replacement will be issued.
- If your item is significantly different from our product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
- Taxes & VAT will not be included;
