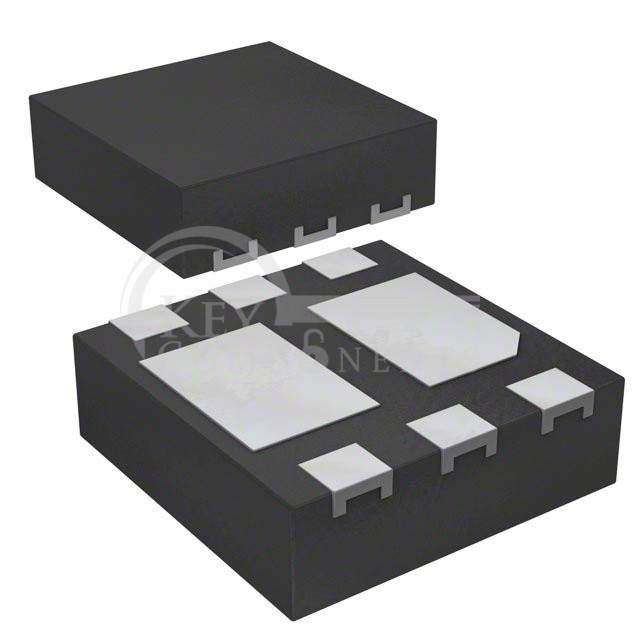

PBSS4160PANPSX
| Manufacturer Part | PBSS4160PANPSX |
|---|---|
| Manufacturer | Nexperia USA Inc. |
| Description | TRANS NPN/PNP 60V 1A DFN2020D-6 |
| Category | Discrete Semiconductor Products |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Transistor Type: | NPN, PNP |
| Current - Collector (Ic) (Max): | 1A |
| Voltage - Collector Emitter Breakdown (Max): | 60V |
| Vce Saturation (Max) @ Ib, Ic: | 120mV @ 50mA, 500mA, 340mV @ 100mA, 1A |
| Current - Collector Cutoff (Max): | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce: | 150 @ 500mA, 2V / 120 @ 500mA, 2V |
| Power - Max: | 370mW |
| Frequency - Transition: | 175MHz, 125MHz |
| Operating Temperature: | 150°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | 6-UDFN Exposed Pad |
| Supplier Device Package: | DFN2020D-6 |
