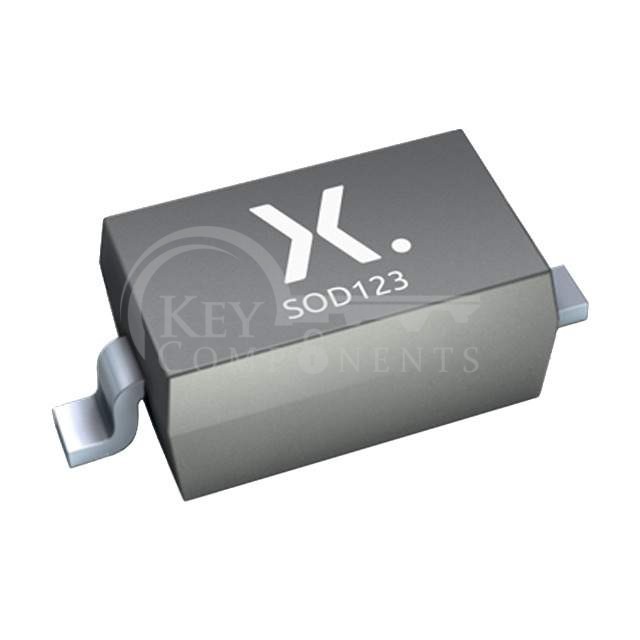

BZT52-B8V2X
| Manufacturer Part | BZT52-B8V2X |
|---|---|
| Manufacturer | Nexperia USA Inc. |
| Description | DIODE ZENER 8.2V 590MW SOD123 |
| Category | Discrete Semiconductor Products |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Voltage - Zener (Nom) (Vz): | 8.2 V |
| Tolerance: | ±1.95% |
| Power - Max: | 590 mW |
| Impedance (Max) (Zzt): | 10 Ohms |
| Current - Reverse Leakage @ Vr: | 700 nA @ 5 V |
| Voltage - Forward (Vf) (Max) @ If: | 900 mV @ 10 mA |
| Operating Temperature: | -55°C ~ 150°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | SOD-123 |
| Supplier Device Package: | SOD-123 |
