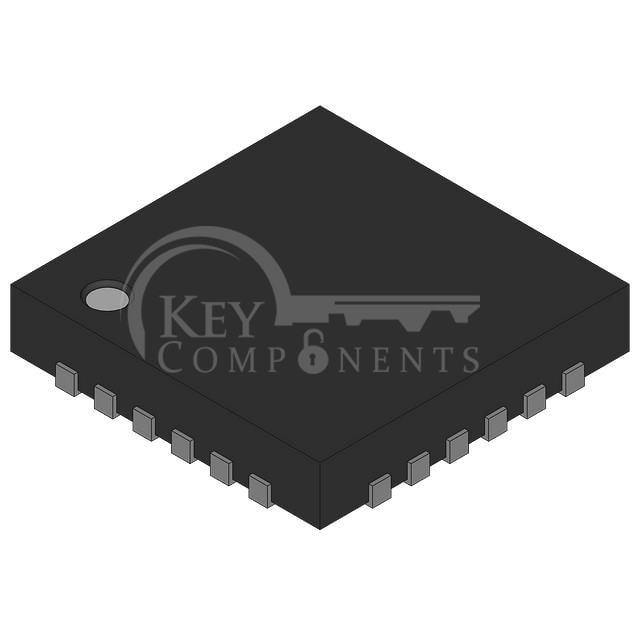

LMX2354SLBX
| Manufacturer Part | LMX2354SLBX |
|---|---|
| Manufacturer | National Semiconductor |
| Description | PLL FREQUENCY SYNTHESIZER |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | PLL Frequency Synthesizer |
| PLL: | Yes with Bypass |
| Input: | CMOS, TTL |
| Output: | CMOS |
| Number of Circuits: | 1 |
| Ratio - Input:Output: | 3:3 |
| Differential - Input:Output: | Yes/No |
| Frequency - Max: | 2.5GHz, 550MHz |
| Divider/Multiplier: | Yes/Yes |
| Voltage - Supply: | 2.7V ~ 5.5V |
| Operating Temperature: | -40°C ~ 85°C |
| Mounting Type: | Surface Mount |
| Package / Case: | 24-TFQFN, CSP |
| Supplier Device Package: | 24-CSP (4.5x3.5) |
