5035661300
| Manufacturer Part | 5035661300 |
|---|---|
| Manufacturer | Molex |

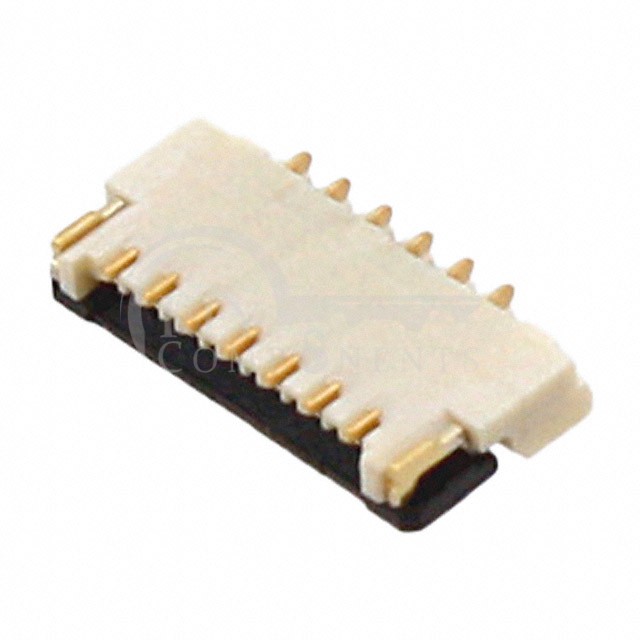

| Description | CONN FPC BOTTOM 13POS 0.30MM R/A |
| Category | Connectors, Interconnects |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Flat Flex Type: | FPC |
| Mounting Type: | Surface Mount, Right Angle |
| Connector/Contact Type: | Contacts, Bottom |
| Number of Positions: | 13 |
| Pitch: | 0.012" (0.30mm) |
| Termination: | Solder |
| FFC, FCB Thickness: | 0.20mm |
| Height Above Board: | 0.037" (0.95mm) |
| Locking Feature: | Flip Lock |
| Cable End Type: | Tabbed |
| Contact Material: | Phosphor Bronze |
| Contact Finish: | Gold |
| Housing Material: | Liquid Crystal Polymer (LCP), Glass Filled |
| Actuator Material: | Polyamide (PA), Nylon, Glass Filled |
| Features: | Solder Retention |
| Voltage Rating: | 50V |
| Operating Temperature: | -40°C ~ 85°C |
| Material Flammability Rating: | UL94 V-0, UL94 HB |
