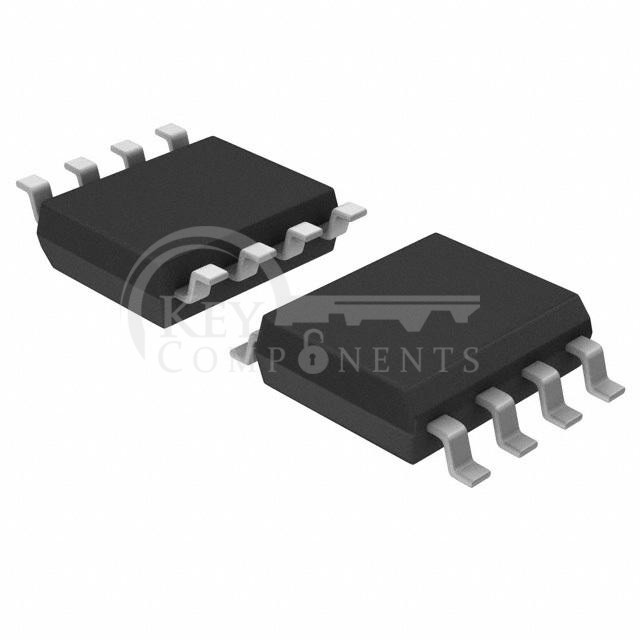

NX2114CSTR
| Manufacturer Part | NX2114CSTR |
|---|---|
| Manufacturer | Microsemi Corporation |
| Description | IC PWM CONTROLLER |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Output Type: | PWM |
| Function: | Step-Down |
| Output Configuration: | Positive |
| Topology: | Buck |
| Number of Outputs: | 1 |
| Output Phases: | 1 |
| Voltage - Supply (Vcc/Vdd): | 4.5V ~ 5.5V |
| Frequency - Switching: | 300kHz |
| Duty Cycle (Max): | 94% |
| Synchronous Rectifier: | Yes |
| Clock Sync: | No |
| Serial Interfaces: | - |
| Control Features: | Enable, Soft Start |
| Operating Temperature: | 0°C ~ 70°C |
| Mounting Type: | Surface Mount |
| Package / Case: | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package: | 8-SOIC |
