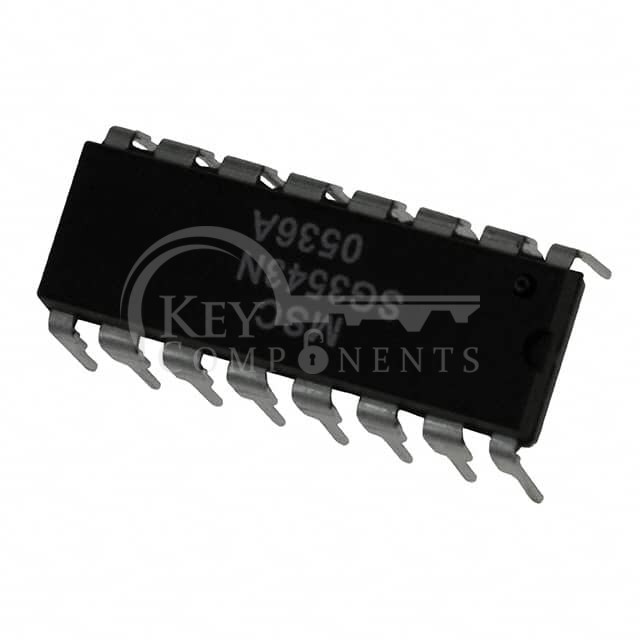

SG3543N
| Manufacturer Part | SG3543N |
|---|---|
| Manufacturer | Microchip Technology |
| Description | IC POWER SUPPLY SUPERVISOR 16DIP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Applications: | Power Supply, Supervisor |
| Voltage - Input: | - |
| Voltage - Supply: | 4.5V ~ 40V |
| Current - Supply: | 7 mA |
| Operating Temperature: | 0°C ~ 70°C |
| Mounting Type: | Through Hole |
| Package / Case: | 16-DIP |
| Supplier Device Package: | 16-DIP |
