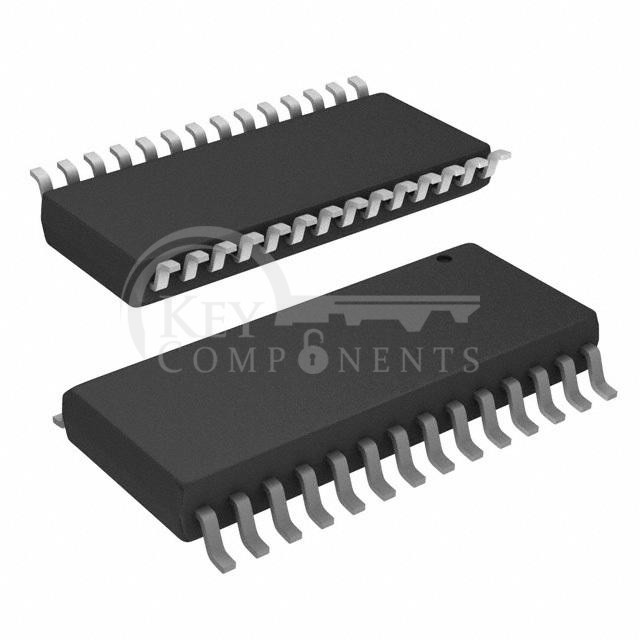

MCP23S17T-E/SO
| Manufacturer Part | MCP23S17T-E/SO |
|---|---|
| Manufacturer | Microchip Technology |
| Description | IC I/O EXPANDER SPI 16B 28SOIC |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Number of I/O: | 16 |
| Interface: | SPI |
| Interrupt Output: | Yes |
| Features: | POR |
| Output Type: | Push-Pull |
| Current - Output Source/Sink: | 25mA |
| Clock Frequency: | 10 MHz |
| Voltage - Supply: | 1.8V ~ 5.5V |
| Operating Temperature: | -40°C ~ 125°C |
| Mounting Type: | Surface Mount |
| Package / Case: | 28-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package: | 28-SOIC |
