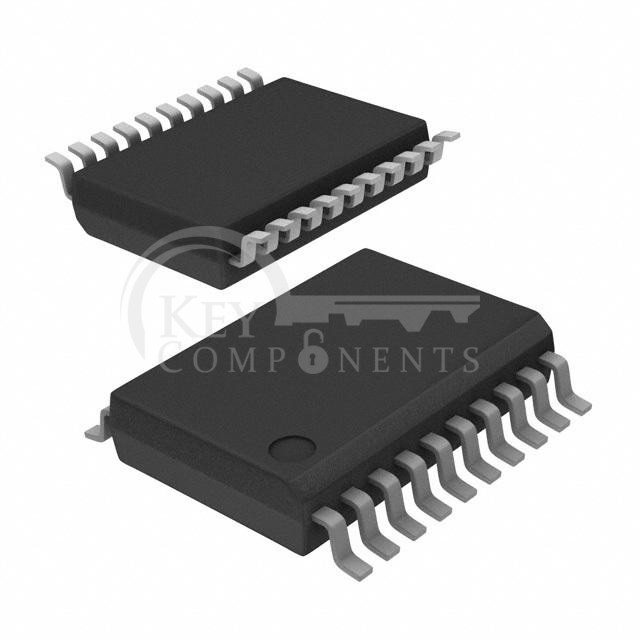

MCP1631VT-E/SS
| Manufacturer Part | MCP1631VT-E/SS |
|---|---|
| Manufacturer | Microchip Technology |
| Description | IC REG CTRLR SEPIC 20SSOP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Output Type: | Transistor Driver |
| Function: | Step-Up/Step-Down |
| Output Configuration: | Positive |
| Topology: | Sepic |
| Number of Outputs: | 1 |
| Output Phases: | 1 |
| Voltage - Supply (Vcc/Vdd): | 3V ~ 5.5V |
| Frequency - Switching: | - |
| Duty Cycle (Max): | - |
| Synchronous Rectifier: | No |
| Clock Sync: | No |
| Serial Interfaces: | - |
| Control Features: | Enable, Frequency Control, Ramp |
| Operating Temperature: | -40°C ~ 125°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | 20-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package: | 20-SSOP |
