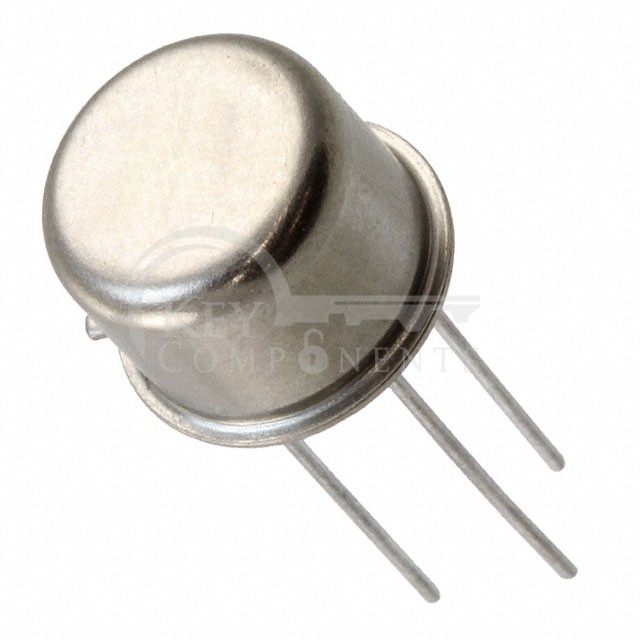

2N2323S
| Manufacturer Part | 2N2323S |
|---|---|
| Manufacturer | Microchip Technology |
| Description | SCR 50V TO5 |
| Category | Discrete Semiconductor Products |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Voltage - Off State: | 50 V |
| Voltage - Gate Trigger (Vgt) (Max): | 800 mV |
| Current - Gate Trigger (Igt) (Max): | 200 µA |
| Voltage - On State (Vtm) (Max): | - |
| Current - On State (It (AV)) (Max): | 220 mA |
| Current - On State (It (RMS)) (Max): | - |
| Current - Hold (Ih) (Max): | 2 mA |
| Current - Off State (Max): | - |
| Current - Non Rep. Surge 50, 60Hz (Itsm): | - |
| SCR Type: | Sensitive Gate |
| Operating Temperature: | -65°C ~ 125°C |
| Mounting Type: | Through Hole |
| Package / Case: | TO-205AA, TO-5-3 Metal Can |
| Supplier Device Package: | TO-5 |
