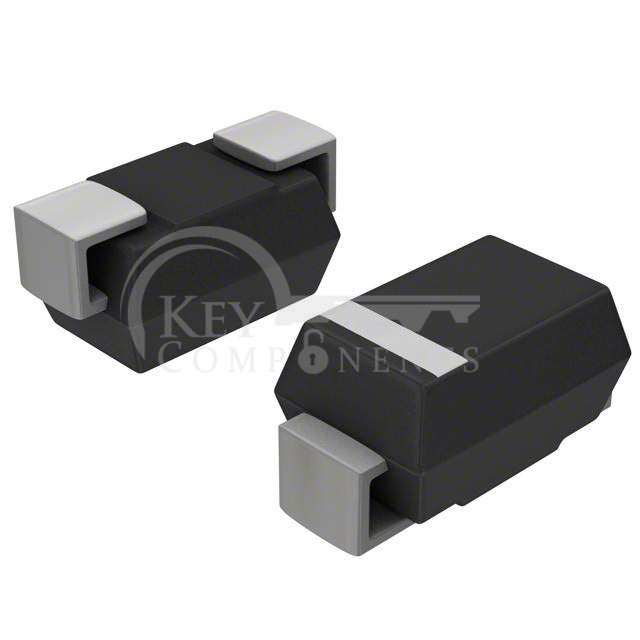

SMBJ13CA-TP
| Manufacturer Part | SMBJ13CA-TP |
|---|---|
| Manufacturer | Micro Commercial Co |
| Description | TVS DIODE 13VWM 21.5VC DO214AA |
| Category | Circuit Protection |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Zener |
| Unidirectional Channels: | - |
| Bidirectional Channels: | 1 |
| Voltage - Reverse Standoff (Typ): | 13V |
| Voltage - Breakdown (Min): | 14.4V |
| Voltage - Clamping (Max) @ Ipp: | 21.5V |
| Current - Peak Pulse (10/1000µs): | 27.9A |
| Power - Peak Pulse: | 600W |
| Power Line Protection: | No |
| Applications: | General Purpose |
| Capacitance @ Frequency: | - |
| Operating Temperature: | -55°C ~ 175°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | DO-214AA, SMB |
| Supplier Device Package: | DO-214AA (SMB) |
