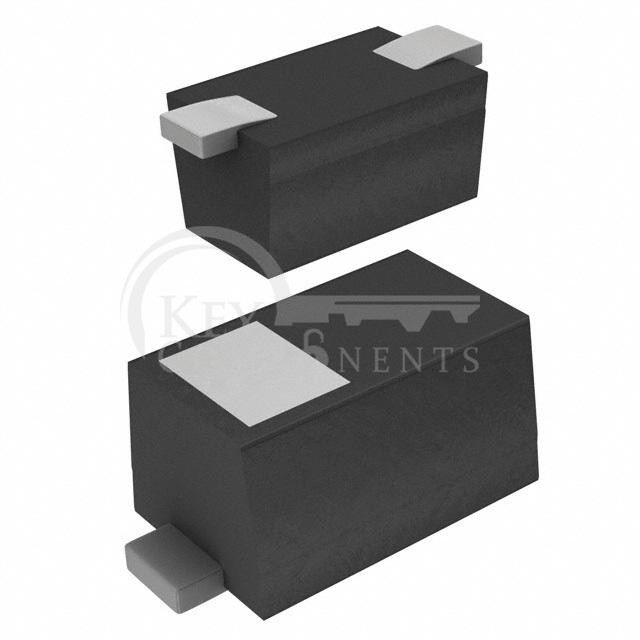

ESD3V3D5-TP
| Manufacturer Part | ESD3V3D5-TP |
|---|---|
| Manufacturer | Micro Commercial Co |
| Description | TVS DIODE 3.3VWM 14.1VC SOD523 |
| Category | Circuit Protection |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Zener |
| Unidirectional Channels: | 1 |
| Bidirectional Channels: | - |
| Voltage - Reverse Standoff (Typ): | 3.3V (Max) |
| Voltage - Breakdown (Min): | 5V |
| Voltage - Clamping (Max) @ Ipp: | 14.1V |
| Current - Peak Pulse (10/1000µs): | 11.2A (8/20µs) |
| Power - Peak Pulse: | 158W |
| Power Line Protection: | No |
| Applications: | General Purpose |
| Capacitance @ Frequency: | 105pF @ 1MHz |
| Operating Temperature: | -55°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | SC-79, SOD-523 |
| Supplier Device Package: | SOD-523 |
