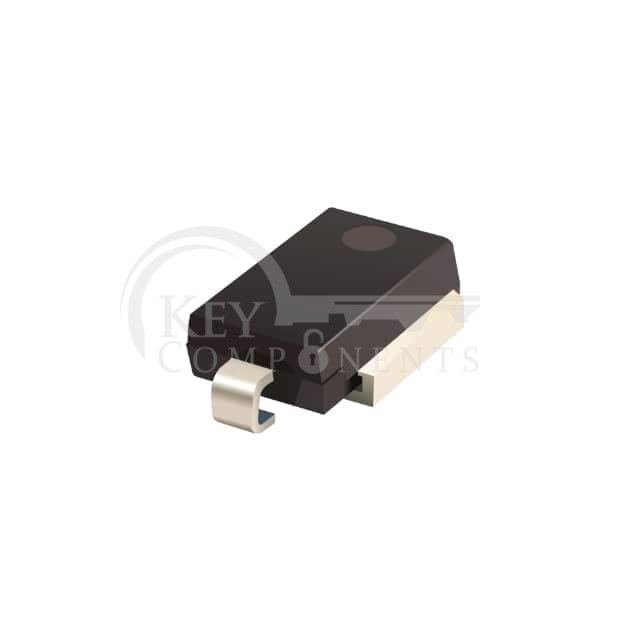

SM8S15A
| Manufacturer Part | SM8S15A |
|---|---|
| Manufacturer | MDD |
| Description | TVS DIODE UNI 15VWM DO218AB |
| Category | Circuit Protection |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Zener |
| Unidirectional Channels: | 1 |
| Bidirectional Channels: | - |
| Voltage - Reverse Standoff (Typ): | 15V |
| Voltage - Breakdown (Min): | 16.7V |
| Voltage - Clamping (Max) @ Ipp: | 24.4V |
| Current - Peak Pulse (10/1000µs): | 270A |
| Power - Peak Pulse: | 6600W (6.6kW) |
| Power Line Protection: | No |
| Applications: | Automotive |
| Capacitance @ Frequency: | - |
| Operating Temperature: | -55°C ~ 175°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | - |
| Supplier Device Package: | DO-218AB |
