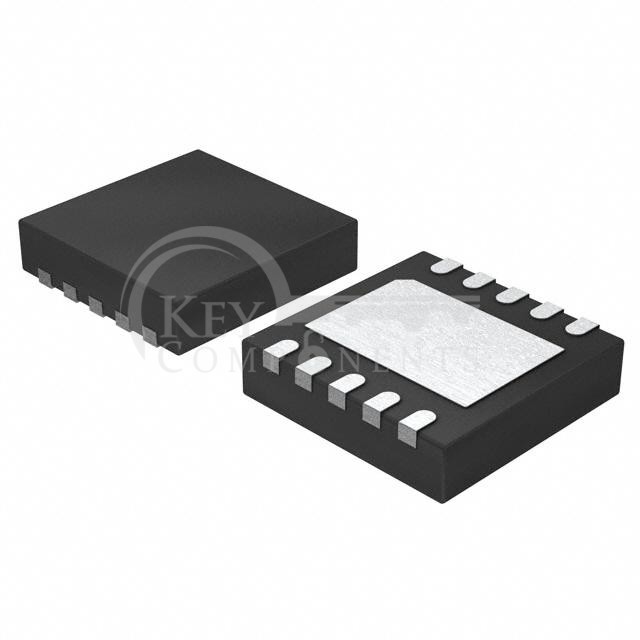

SP6685ER-L
| Manufacturer Part | SP6685ER-L |
|---|---|
| Manufacturer | MaxLinear, Inc. |
| Description | IC LED DRIVER RGLTR 700MA 10DFN |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Discontinued at Digi-Key |
| Type: | DC DC Regulator |
| Topology: | Switched Capacitor (Charge Pump) |
| Internal Switch(s): | Yes |
| Number of Outputs: | 1 |
| Voltage - Supply (Min): | 2.7V |
| Voltage - Supply (Max): | 5.5V |
| Voltage - Output: | - |
| Current - Output / Channel: | 700mA (Flash) |
| Frequency: | 2.4MHz |
| Dimming: | - |
| Applications: | Backlight, Camera Flash |
| Operating Temperature: | -40°C ~ 85°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | 10-VFDFN Exposed Pad |
| Supplier Device Package: | 10-DFN (3x3) |
