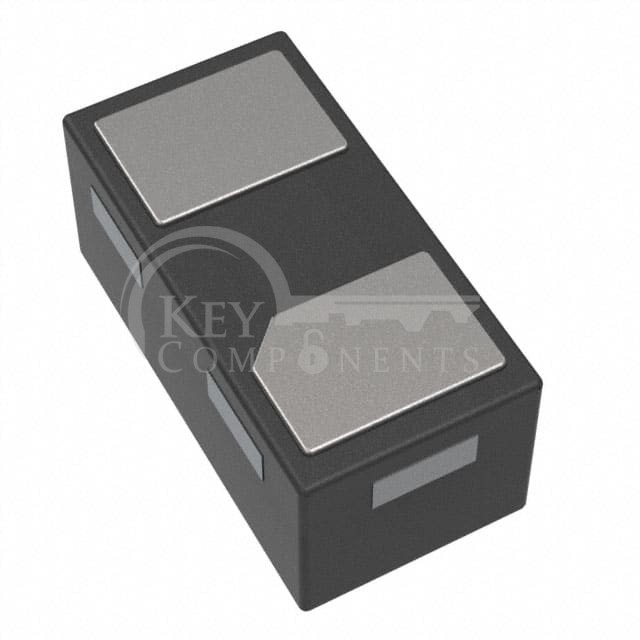

SP0201B-ELC-01UTG
| Manufacturer Part | SP0201B-ELC-01UTG |
|---|---|
| Manufacturer | Littelfuse Inc. |
| Description | TVS DIODE 7VWM 13VC 0201 |
| Category | Circuit Protection |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Zener |
| Unidirectional Channels: | - |
| Bidirectional Channels: | 1 |
| Voltage - Reverse Standoff (Typ): | 7V (Max) |
| Voltage - Breakdown (Min): | 8.8V (Typ) |
| Voltage - Clamping (Max) @ Ipp: | 13V (Typ) |
| Current - Peak Pulse (10/1000µs): | 2.5A (8/20µs) |
| Power - Peak Pulse: | - |
| Power Line Protection: | No |
| Applications: | General Purpose |
| Capacitance @ Frequency: | 0.3pF @ 3GHz |
| Operating Temperature: | -30°C ~ 85°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | 0201 (0603 Metric) |
| Supplier Device Package: | 0201 |
