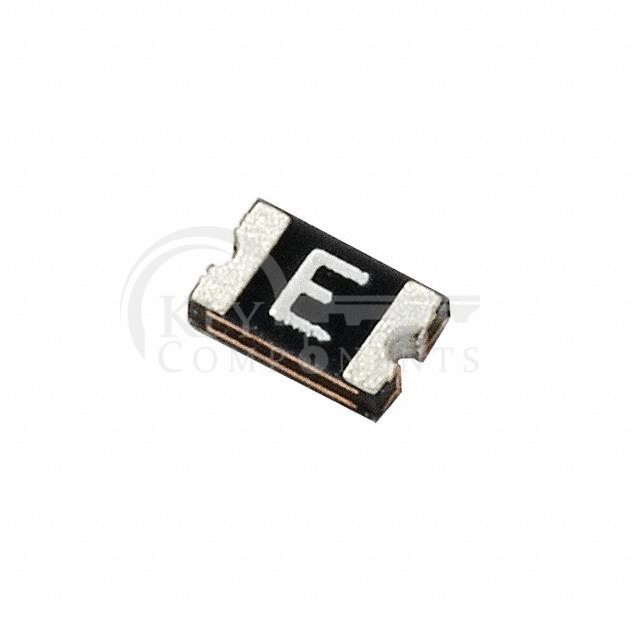

0805L260SLTHYR
| Manufacturer Part | 0805L260SLTHYR |
|---|---|
| Manufacturer | Littelfuse Inc. |
| Description | PTC RESET FUSE 6V 2.6A 0805 |
| Category | Circuit Protection |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Polymeric |
| Voltage - Max: | 6V |
| Current - Max: | 50 A |
| Current - Hold (Ih) (Max): | 2.6 A |
| Current - Trip (It): | 5 A |
| Time to Trip: | 4 s |
| Resistance - Initial (Ri) (Min): | 3 mOhms |
| Resistance - Post Trip (R1) (Max): | 35 mOhms |
| Resistance - 25°C (Typ): | - |
| Operating Temperature: | -40°C ~ 85°C |
| Ratings: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | 0805 (2012 Metric), Concave |
| Size / Dimension: | 0.083" L x 0.053" W (2.10mm x 1.35mm) |
| Height - Seated (Max): | - |
| Thickness (Max): | 0.030" (0.75mm) |
| Lead Spacing: | - |
