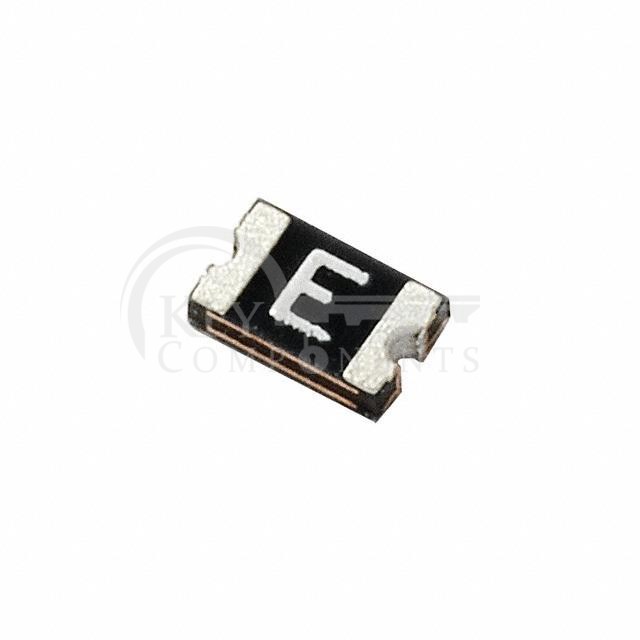

0805L050WR
| Manufacturer Part | 0805L050WR |
|---|---|
| Manufacturer | Littelfuse Inc. |
| Description | PTC RESET FUSE 6V 500MA 0805 |
| Category | Circuit Protection |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Polymeric |
| Voltage - Max: | 6V |
| Current - Max: | 100 A |
| Current - Hold (Ih) (Max): | 500 mA |
| Current - Trip (It): | 1 A |
| Time to Trip: | 100 ms |
| Resistance - Initial (Ri) (Min): | 150 mOhms |
| Resistance - Post Trip (R1) (Max): | 850 mOhms |
| Resistance - 25°C (Typ): | - |
| Operating Temperature: | -40°C ~ 85°C |
| Ratings: | AEC-Q200 |
| Mounting Type: | Surface Mount |
| Package / Case: | 0805 (2012 Metric), Concave |
| Size / Dimension: | 0.083" L x 0.053" W (2.10mm x 1.35mm) |
| Height - Seated (Max): | - |
| Thickness (Max): | 0.049" (1.25mm) |
| Lead Spacing: | - |
Shipping
| Shipping Type | Ship Fee | Lead Time |
| DHL | $20.00-$40.00 (0.50 KG) | 2-5 days |
| Fedex | $20.00-$40.00 (0.50 KG) | 2-5 days |
| UPS | $20.00-$40.00 (0.50 KG) | 2-5 days |
| TNT | $20.00-$40.00 (0.50 KG) | 2-6 days |
| EMS | $20.00-$40.00 (0.50 KG) | 3-7 days |
| REGISTERED AIR MAIL | $2.5-$7 (0.50 KG) | 20-35 days |
Payment
| Payment method | Hand Fee |
| Telegraphic Transfer | charge US$30.00 banking fee. |
| Paypal | charge 4.0% service fee. |
| Credit Card | charge 4% service fee. |
| Western Union | charge US$0.00 banking fee. |
| Money Gram | charge US$0.00 banking fee. |
Guarantees
- We provide 90 days warranty;
- The Pre-Shipment Inspection (PSI) will be applied;
- If some of the items you received aren't of perfect quality, we would responsibly arrange your refund or replacement. But the items must remain their original condition;
- If you don't receive the item in 25 days, just let us know, a new package or replacement will be issued.
- If your item is significantly different from our product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
- Taxes & VAT will not be included;
