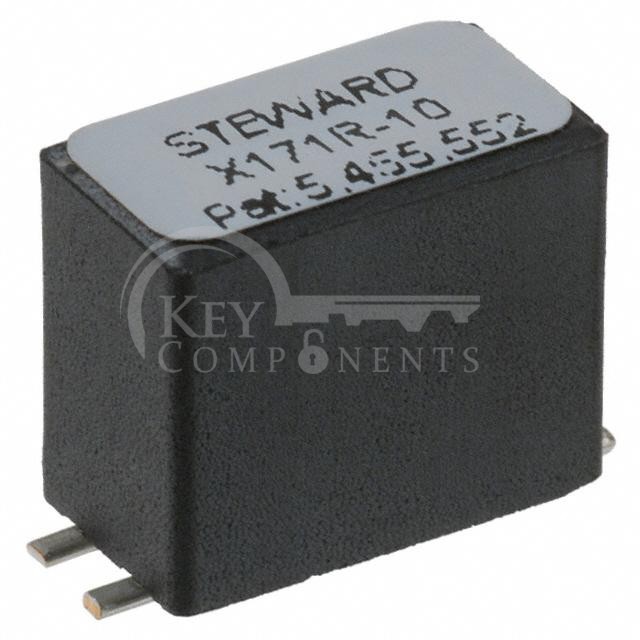

CM2545X171R-00
| Manufacturer Part | CM2545X171R-00 |
|---|---|
| Manufacturer | Laird-Signal Integrity Products |
| Description | CMC 10A 2LN 170 OHM SMD |
| Category | Filters |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Filter Type: | Power Line |
| Number of Lines: | 2 |
| Impedance @ Frequency: | 170 Ohms @ 100 MHz |
| Inductance @ Frequency: | - |
| Current Rating (Max): | 10A |
| DC Resistance (DCR) (Max): | 3mOhm |
| Voltage Rating - DC: | - |
| Voltage Rating - AC: | - |
| Operating Temperature: | -55°C ~ 125°C |
| Ratings: | - |
| Approval Agency: | - |
| Features: | - |
| Mounting Type: | Surface Mount |
| Size / Dimension: | 0.448" L x 0.248" W (11.38mm x 6.30mm) |
| Height (Max): | 0.377" (9.57mm) |
| Package / Case: | Vertical, 8 PC Pin |
