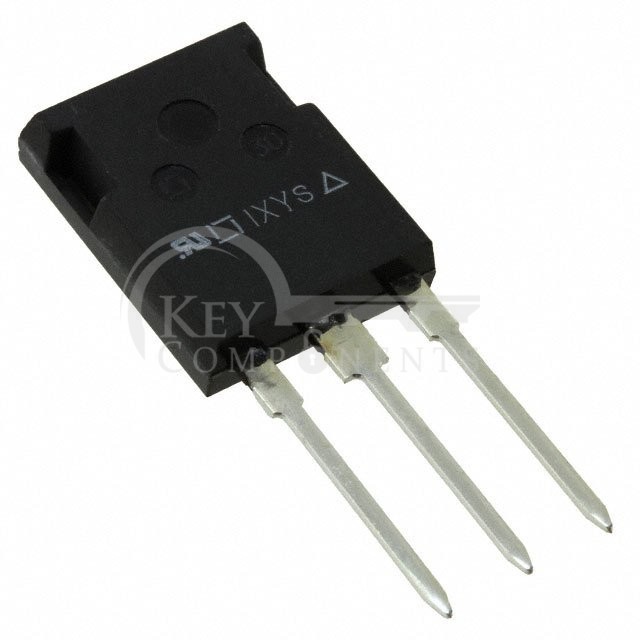

IXGR48N60C3D1

Manufacturer Part	IXGR48N60C3D1
Manufacturer	IXYS
Description	IGBT 600V 56A 125W ISOPLUS247
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
IGBT Type:	PT
Voltage - Collector Emitter Breakdown (Max):	600 V
Current - Collector (Ic) (Max):	56 A
Current - Collector Pulsed (Icm):	230 A
Vce(on) (Max) @ Vge, Ic:	2.7V @ 15V, 30A
Power - Max:	125 W
Switching Energy:	410µJ (on), 230µJ (off)
Input Type:	Standard
Gate Charge:	77 nC
Td (on/off) @ 25°C:	19ns/60ns
Test Condition:	400V, 30A, 3Ohm, 15V
Reverse Recovery Time (trr):	25 ns
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-247-3
Supplier Device Package:	ISOPLUS247™
