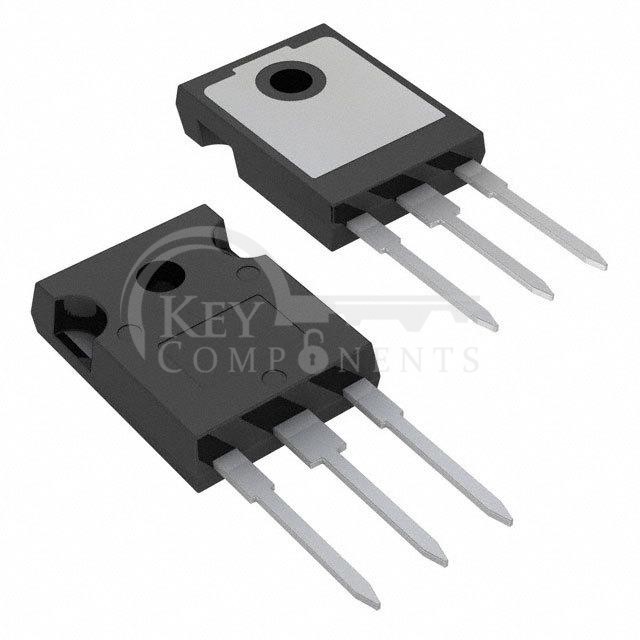

IRG7PH42U-EP

Manufacturer Part	IRG7PH42U-EP
Manufacturer	International Rectifier
Description	IGBT
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
IGBT Type:	Trench
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	90 A
Current - Collector Pulsed (Icm):	90 A
Vce(on) (Max) @ Vge, Ic:	2V @ 15V, 30A
Power - Max:	385 W
Switching Energy:	2.11mJ (on), 1.18mJ (off)
Input Type:	Standard
Gate Charge:	157 nC
Td (on/off) @ 25°C:	25ns/229ns
Test Condition:	600V, 30A, 10Ohm, 15V
Reverse Recovery Time (trr):	153 ns
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-247-3
Supplier Device Package:	TO-247AD
