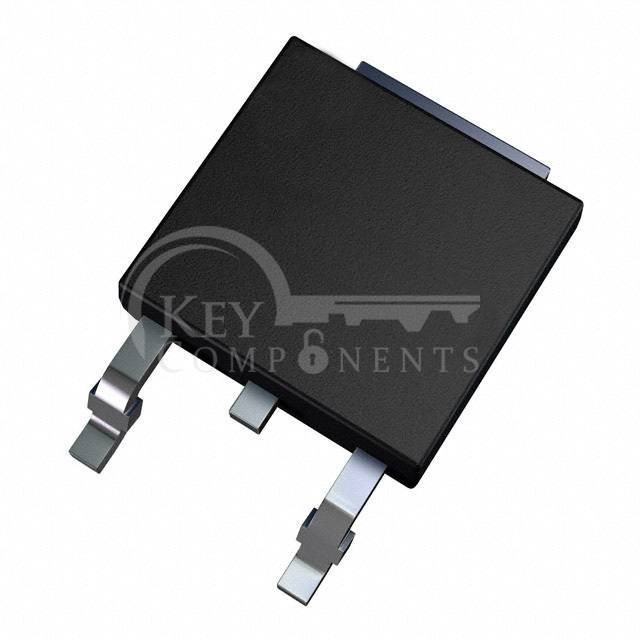

IRG4RC20FTRPBF

Manufacturer Part	IRG4RC20FTRPBF
Manufacturer	International Rectifier
Description	FAST SPEED IGBT
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
IGBT Type:	-
Voltage - Collector Emitter Breakdown (Max):	600 V
Current - Collector (Ic) (Max):	22 A
Current - Collector Pulsed (Icm):	44 A
Vce(on) (Max) @ Vge, Ic:	2.1V @ 15V, 12A
Power - Max:	66 W
Switching Energy:	190µJ (on), 920µJ (off)
Input Type:	Standard
Gate Charge:	27 nC
Td (on/off) @ 25°C:	26ns/194ns
Test Condition:	480V, 12A, 50Ohm, 15V
Reverse Recovery Time (trr):	-
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package:	D-Pak
