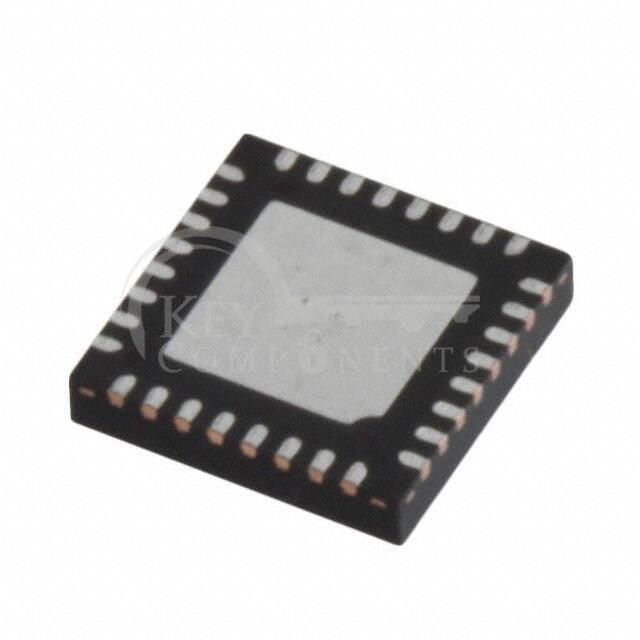

IR3623MTRPBF
| Manufacturer Part | IR3623MTRPBF |
|---|---|
| Manufacturer | International Rectifier |
| Description | IR3623 - HIGH FREQUENCY 2-PHASE |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Output Type: | PWM Signal |
| Function: | Step-Down |
| Output Configuration: | Positive |
| Topology: | Buck |
| Number of Outputs: | 2 |
| Output Phases: | 2 |
| Voltage - Supply (Vcc/Vdd): | 8.5V ~ 14.5V |
| Frequency - Switching: | 200kHz ~ 1.2MHz |
| Duty Cycle (Max): | 85% |
| Synchronous Rectifier: | Yes |
| Clock Sync: | Yes |
| Serial Interfaces: | - |
| Control Features: | Current Limit, Enable, Frequency Control, Power Good, Sequencing, Soft Start, Tracking |
| Operating Temperature: | -40°C ~ 125°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | 32-VFQFN Exposed Pad |
| Supplier Device Package: | 32-MLPQ (5x5) |
