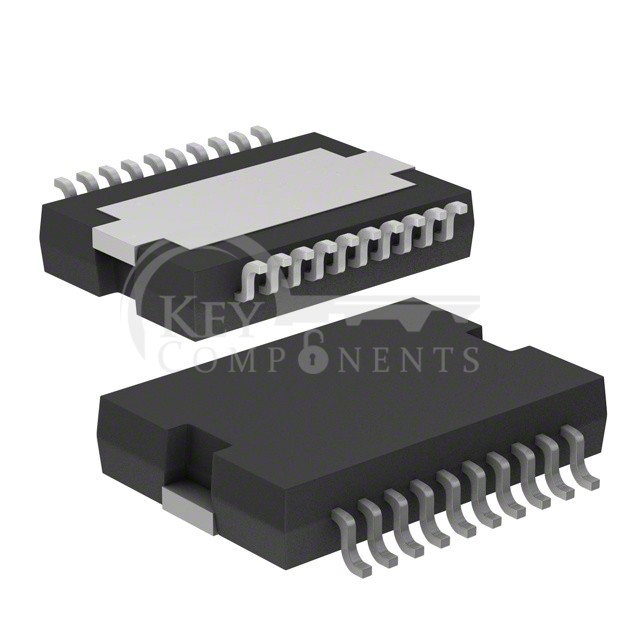

TLE7209-2R
| Manufacturer Part | TLE7209-2R |
|---|---|
| Manufacturer | Infineon Technologies |
| Description | IC MOTOR DRIVER 5V-28V 20DSO |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Motor Type - Stepper: | - |
| Motor Type - AC, DC: | Brushed DC |
| Function: | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration: | Half Bridge (2) |
| Interface: | SPI |
| Technology: | CMOS |
| Step Resolution: | - |
| Applications: | General Purpose |
| Current - Output: | 5A |
| Voltage - Supply: | 5V ~ 28V |
| Voltage - Load: | 5V ~ 28V |
| Operating Temperature: | -40°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | 20-PowerSOIC (0.433", 11.00mm Width) |
| Supplier Device Package: | PG-DSO-20-12 |
