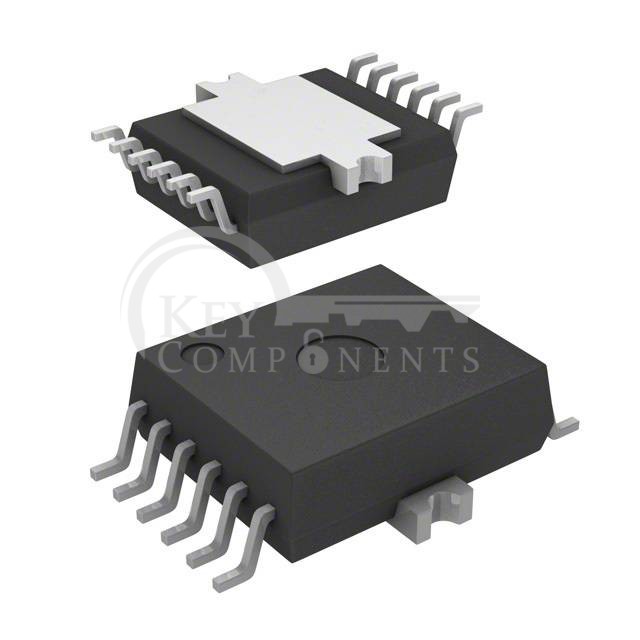

TLE6214L
| Manufacturer Part | TLE6214L |
|---|---|
| Manufacturer | Infineon Technologies |
| Description | IC PWR SWITCH N-CHAN 1:1 DSO-12 |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Switch Type: | General Purpose |
| Number of Outputs: | 2 |
| Ratio - Input:Output: | 1:1 |
| Output Configuration: | Low Side |
| Output Type: | N-Channel |
| Interface: | SPI |
| Voltage - Load: | 4.5V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd): | - |
| Current - Output (Max): | 5A |
| Rds On (Typ): | 180mOhm |
| Input Type: | - |
| Features: | - |
| Fault Protection: | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
| Operating Temperature: | -40°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount |
| Supplier Device Package: | PG-DSO-12-4 |
| Package / Case: | 12-BSOP (0.295", 7.50mm Width) Exposed Pad |
