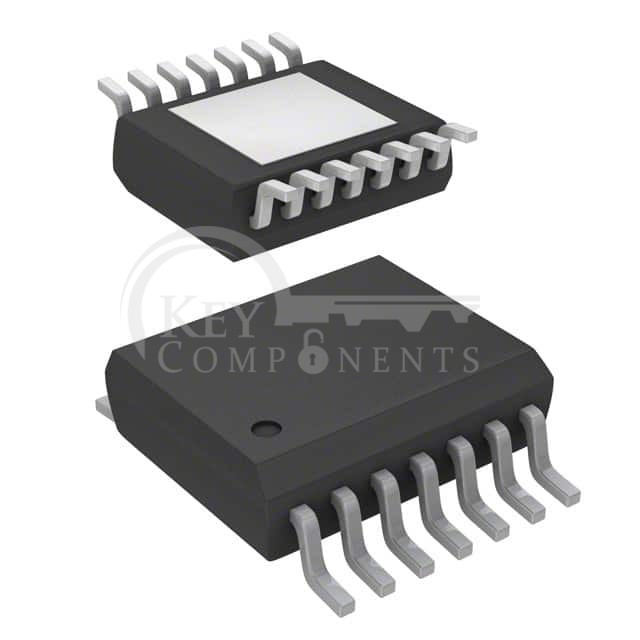

TLD5098ELXUMA1
| Manufacturer Part | TLD5098ELXUMA1 |
|---|---|
| Manufacturer | Infineon Technologies |
| Description | IC LED DRIVER CTRLR PWM 14SSOP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Not For New Designs |
| Type: | DC DC Controller |
| Topology: | Flyback, SEPIC, Step-Down (Buck), Step-Up (Boost) |
| Internal Switch(s): | No |
| Number of Outputs: | 1 |
| Voltage - Supply (Min): | 4.5V |
| Voltage - Supply (Max): | 45V |
| Voltage - Output: | 4.5V ~ 5.5V |
| Current - Output / Channel: | - |
| Frequency: | 100kHz ~ 500kHz |
| Dimming: | Analog, PWM |
| Applications: | Automotive |
| Operating Temperature: | -40°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | 14-LSSOP (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package: | PG-SSOP-14-EP |
