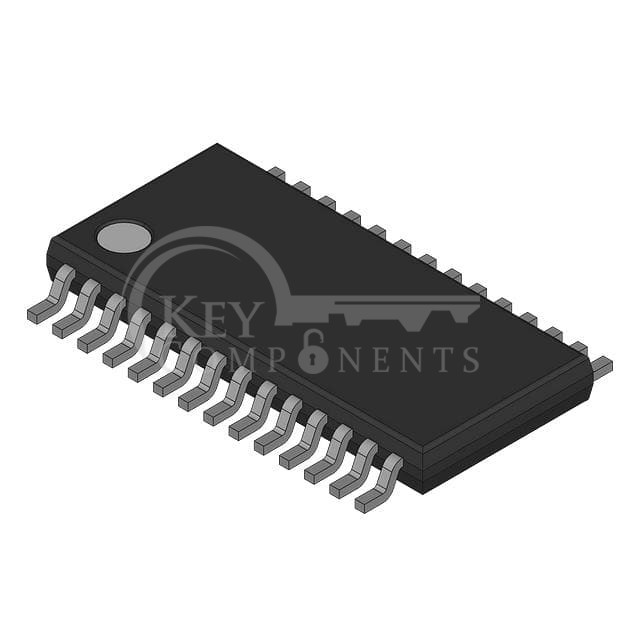

TDA5230
| Manufacturer Part | TDA5230 |
|---|---|
| Manufacturer | Infineon Technologies |
| Description | ASK/FSK SINGLE RECEIVER |
| Category | RF/IF and RFID |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Frequency: | 433MHz ~ 450MHz, 865MHz ~ 868MHz |
| Sensitivity: | -111dBm |
| Data Rate (Max): | 20kbps |
| Modulation or Protocol: | ASK, FSK |
| Applications: | RKE, TPM, Security Systems |
| Current - Receiving: | 8mA |
| Data Interface: | PCB, Surface Mount |
| Memory Size: | - |
| Antenna Connector: | PCB, Surface Mount |
| Features: | - |
| Voltage - Supply: | 3V ~ 3.6V, 4.5V ~ 5.5V |
| Operating Temperature: | -40°C ~ 105°C |
| Mounting Type: | Surface Mount |
| Package / Case: | 28-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package: | PG-TSSOP-28 |
