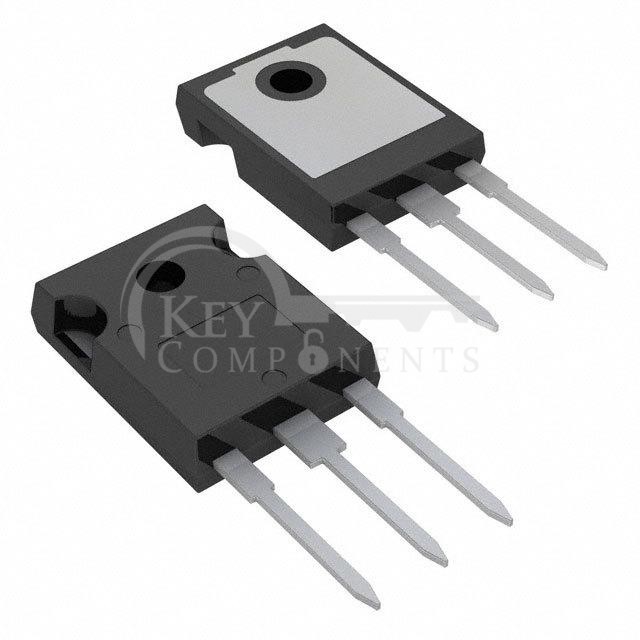

IRG4PC30KD

Manufacturer Part	IRG4PC30KD
Manufacturer	Infineon Technologies
Description	IGBT 600V 28A 100W TO247AC
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Obsolete
IGBT Type:	-
Voltage - Collector Emitter Breakdown (Max):	600 V
Current - Collector (Ic) (Max):	28 A
Current - Collector Pulsed (Icm):	58 A
Vce(on) (Max) @ Vge, Ic:	2.7V @ 15V, 16A
Power - Max:	100 W
Switching Energy:	600µJ (on), 580µJ (off)
Input Type:	Standard
Gate Charge:	67 nC
Td (on/off) @ 25°C:	60ns/160ns
Test Condition:	480V, 16A, 23Ohm, 15V
Reverse Recovery Time (trr):	42 ns
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-247-3
Supplier Device Package:	TO-247AC
