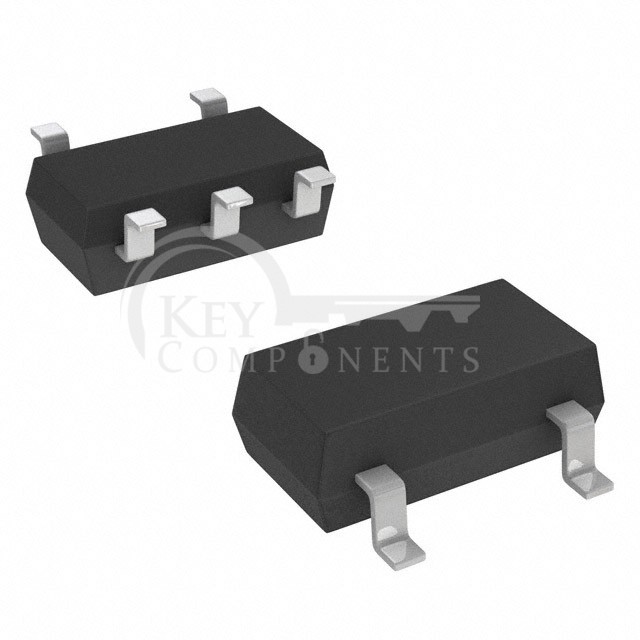

IR44272LTRPBF
| Manufacturer Part | IR44272LTRPBF |
|---|---|
| Manufacturer | Infineon Technologies |
| Description | IC GATE DRVR LOW-SIDE SOT23-5 |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Driven Configuration: | Low-Side |
| Channel Type: | Single |
| Number of Drivers: | 1 |
| Gate Type: | IGBT, N-Channel MOSFET |
| Voltage - Supply: | 5V ~ 18V |
| Logic Voltage - VIL, VIH: | 0.6V, 2.7V |
| Current - Peak Output (Source, Sink): | 1.5A, 1.5A |
| Input Type: | Non-Inverting |
| High Side Voltage - Max (Bootstrap): | - |
| Rise / Fall Time (Typ): | 10ns, 10ns |
| Operating Temperature: | -40°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | SC-74A, SOT-753 |
| Supplier Device Package: | PG-SOT23-5 |
