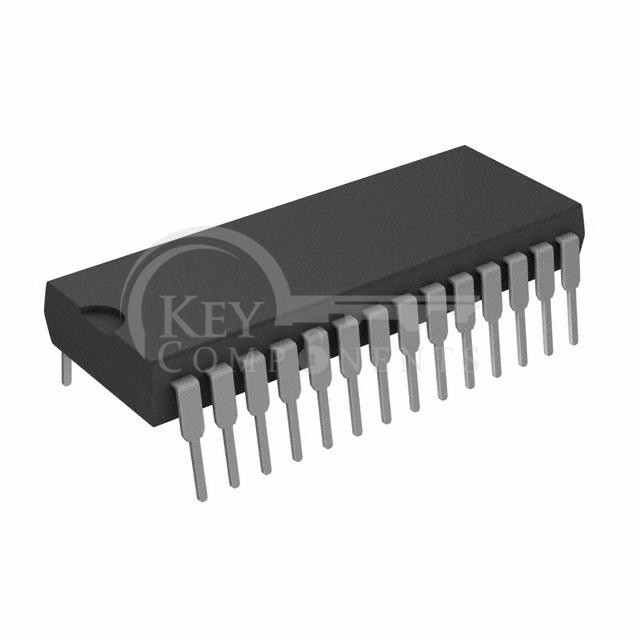

IR2130PBF
| Manufacturer Part | IR2130PBF |
|---|---|
| Manufacturer | Infineon Technologies |
| Description | IC GATE DRVR HALF-BRIDGE 28DIP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Not For New Designs |
| Driven Configuration: | Half-Bridge |
| Channel Type: | 3-Phase |
| Number of Drivers: | 6 |
| Gate Type: | IGBT, N-Channel MOSFET |
| Voltage - Supply: | 10V ~ 20V |
| Logic Voltage - VIL, VIH: | 0.8V, 2.2V |
| Current - Peak Output (Source, Sink): | 250mA, 500mA |
| Input Type: | Inverting |
| High Side Voltage - Max (Bootstrap): | 600 V |
| Rise / Fall Time (Typ): | 80ns, 35ns |
| Operating Temperature: | -40°C ~ 150°C (TJ) |
| Mounting Type: | Through Hole |
| Package / Case: | 28-DIP (0.600", 15.24mm) |
| Supplier Device Package: | 28-PDIP |
Shipping
| Shipping Type | Ship Fee | Lead Time |
| DHL | $20.00-$40.00 (0.50 KG) | 2-5 days |
| Fedex | $20.00-$40.00 (0.50 KG) | 2-5 days |
| UPS | $20.00-$40.00 (0.50 KG) | 2-5 days |
| TNT | $20.00-$40.00 (0.50 KG) | 2-6 days |
| EMS | $20.00-$40.00 (0.50 KG) | 3-7 days |
| REGISTERED AIR MAIL | $2.5-$7 (0.50 KG) | 20-35 days |
Payment
| Payment method | Hand Fee |
| Telegraphic Transfer | charge US$30.00 banking fee. |
| Paypal | charge 4.0% service fee. |
| Credit Card | charge 4% service fee. |
| Western Union | charge US$0.00 banking fee. |
| Money Gram | charge US$0.00 banking fee. |
Guarantees
- We provide 90 days warranty;
- The Pre-Shipment Inspection (PSI) will be applied;
- If some of the items you received aren't of perfect quality, we would responsibly arrange your refund or replacement. But the items must remain their original condition;
- If you don't receive the item in 25 days, just let us know, a new package or replacement will be issued.
- If your item is significantly different from our product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
- Taxes & VAT will not be included;
