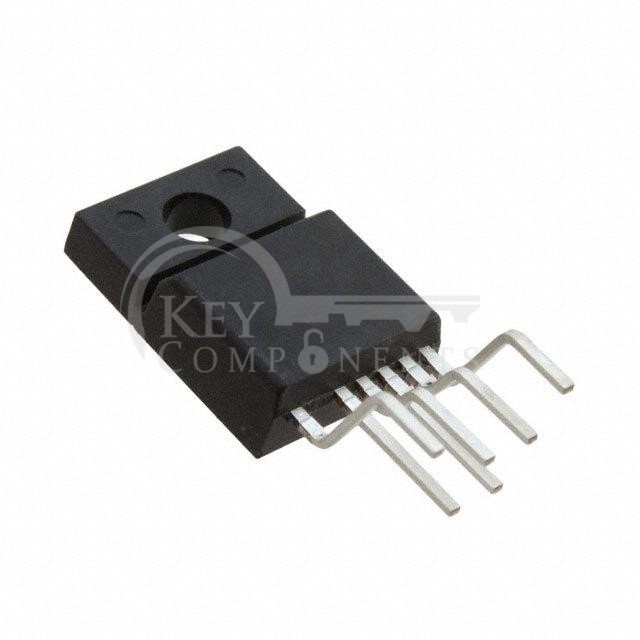

ICE3BR2565JF
| Manufacturer Part | ICE3BR2565JF |
|---|---|
| Manufacturer | Infineon Technologies |
| Description | IC OFFLINE SWITCH FLYBACK TO220 |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Output Isolation: | Isolated |
| Internal Switch(s): | Yes |
| Voltage - Breakdown: | 650V |
| Topology: | Flyback |
| Voltage - Start Up: | 18 V |
| Voltage - Supply (Vcc/Vdd): | 10.5V ~ 25V |
| Duty Cycle: | 75% |
| Frequency - Switching: | 67kHz |
| Power (Watts): | 106 W |
| Fault Protection: | Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage |
| Control Features: | - |
| Operating Temperature: | -25°C ~ 130°C (TJ) |
| Package / Case: | TO-220-6 Full Pack, Formed Leads |
| Supplier Device Package: | PG-TO220-6-247 |
| Mounting Type: | Through Hole |
