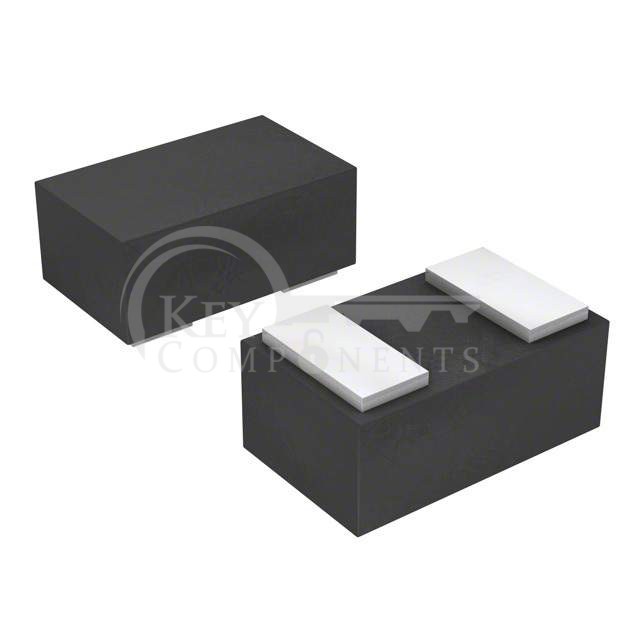

ESD101B102ELE6327XTMA1
| Manufacturer Part | ESD101B102ELE6327XTMA1 |
|---|---|
| Manufacturer | Infineon Technologies |
| Description | TVS DIODE 5.5VWM 30VC TSLP-2-20 |
| Category | Circuit Protection |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Not For New Designs |
| Type: | Zener |
| Unidirectional Channels: | - |
| Bidirectional Channels: | 1 |
| Voltage - Reverse Standoff (Typ): | 5.5V (Max) |
| Voltage - Breakdown (Min): | 7.3V (Typ) |
| Voltage - Clamping (Max) @ Ipp: | 30V |
| Current - Peak Pulse (10/1000µs): | 2A (8/20µs) |
| Power - Peak Pulse: | - |
| Power Line Protection: | No |
| Applications: | RF Antenna |
| Capacitance @ Frequency: | 0.2pF @ 1MHz |
| Operating Temperature: | -55°C ~ 125°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | 0402 (1006 Metric) |
| Supplier Device Package: | PG-TSLP-2-20 |
