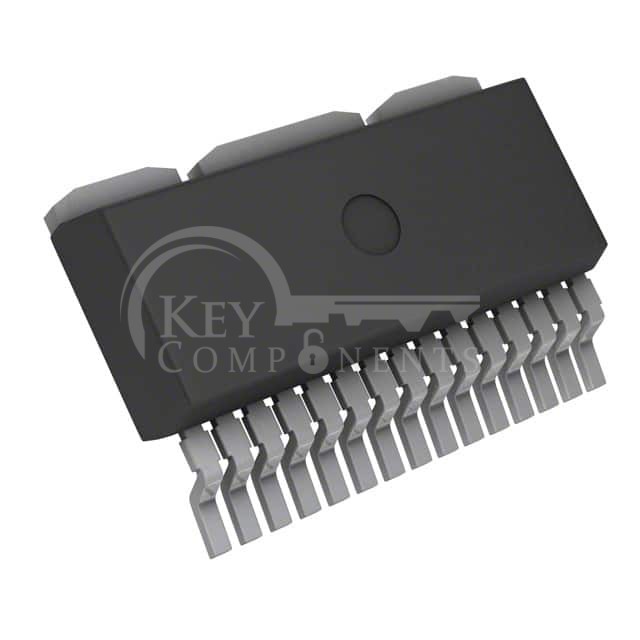

BTS7750GP
| Manufacturer Part | BTS7750GP |
|---|---|
| Manufacturer | Infineon Technologies |
| Description | IC TRILITHIC SWITCH D2PAK-15 |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Output Configuration: | Half Bridge (2) |
| Applications: | DC Motors, General Purpose |
| Interface: | Logic |
| Load Type: | Inductive |
| Technology: | DMOS |
| Rds On (Typ): | 45mOhm LS, 70mOhm HS |
| Current - Output / Channel: | - |
| Current - Peak Output: | 12A |
| Voltage - Supply: | 1.8V ~ 42V |
| Voltage - Load: | 1.8V ~ 42V |
| Operating Temperature: | -40°C ~ 150°C (TJ) |
| Features: | Status Flag |
| Fault Protection: | ESD, Over Temperature, Short Circuit, UVLO |
| Mounting Type: | Surface Mount |
| Package / Case: | TO-263-18 (15 Leads + 3 Tabs) |
| Supplier Device Package: | PG-TO263-15-1 |
