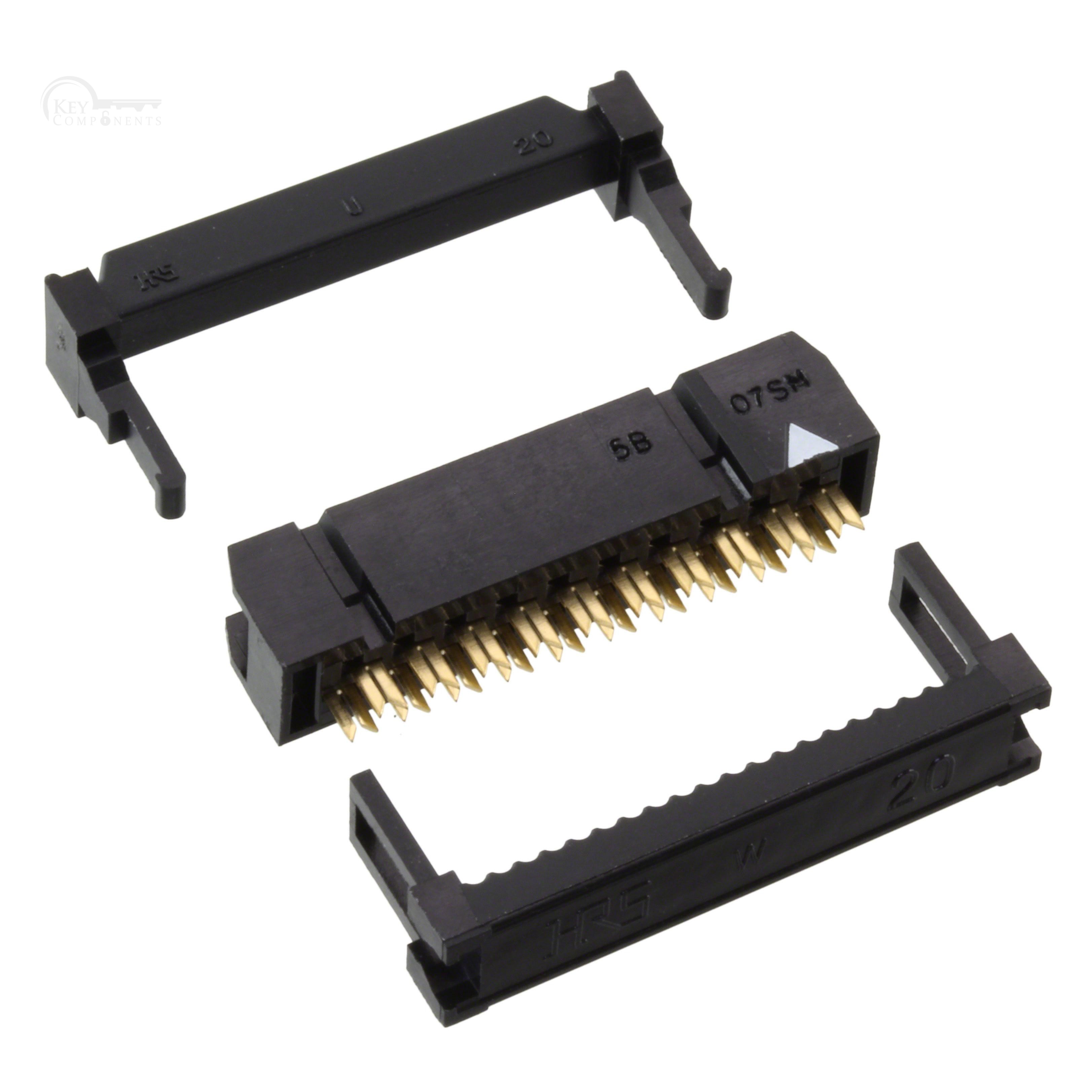

HIF3BA-20D-2.54R
| Manufacturer Part | HIF3BA-20D-2.54R |
|---|---|
| Manufacturer | Hirose Electric Co Ltd |
| Description | CONN SOCKET 20POS IDC 28AWG GOLD |
| Category | Connectors, Interconnects |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Connector Type: | Socket |
| Contact Type: | Female Socket |
| Number of Positions: | 20 |
| Pitch: | 0.100" (2.54mm) |
| Number of Rows: | 2 |
| Row Spacing: | 0.100" (2.54mm) |
| Mounting Type: | Free Hanging (In-Line) |
| Fastening Type: | - |
| Cable Termination: | IDC |
| Wire Type: | Ribbon Cable |
| Wire Gauge: | 28 AWG |
| Features: | Feed Through, Polarizing Key, Strain Relief |
| Contact Finish: | Gold |
| Contact Finish Thickness: | 8.00µin (0.203µm) |
| Color: | Black |
Shipping
| Shipping Type | Ship Fee | Lead Time |
| DHL | $20.00-$40.00 (0.50 KG) | 2-5 days |
| Fedex | $20.00-$40.00 (0.50 KG) | 2-5 days |
| UPS | $20.00-$40.00 (0.50 KG) | 2-5 days |
| TNT | $20.00-$40.00 (0.50 KG) | 2-6 days |
| EMS | $20.00-$40.00 (0.50 KG) | 3-7 days |
| REGISTERED AIR MAIL | $2.5-$7 (0.50 KG) | 20-35 days |
Payment
| Payment method | Hand Fee |
| Telegraphic Transfer | charge US$30.00 banking fee. |
| Paypal | charge 4.0% service fee. |
| Credit Card | charge 4% service fee. |
| Western Union | charge US$0.00 banking fee. |
| Money Gram | charge US$0.00 banking fee. |
Guarantees
- We provide 90 days warranty;
- The Pre-Shipment Inspection (PSI) will be applied;
- If some of the items you received aren't of perfect quality, we would responsibly arrange your refund or replacement. But the items must remain their original condition;
- If you don't receive the item in 25 days, just let us know, a new package or replacement will be issued.
- If your item is significantly different from our product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
- Taxes & VAT will not be included;
