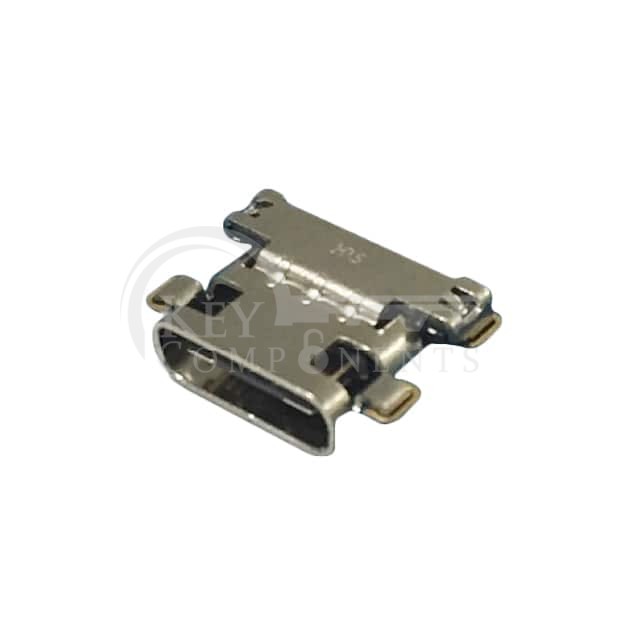

CX70M-24P1
| Manufacturer Part | CX70M-24P1 |
|---|---|
| Manufacturer | Hirose Electric Co Ltd |
| Description | CONN RCPT USB3.0 TYPEC 24POS SMD |
| Category | Connectors, Interconnects |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Connector Type: | USB-C (USB TYPE-C) |
| Number of Contacts: | 24 |
| Gender: | Receptacle |
| Specifications: | USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) |
| Mounting Type: | Board Edge, Cutout; Surface Mount; Through Hole, Right Angle |
| Mounting Feature: | Horizontal, Mid Mount |
| Termination: | Solder |
| Features: | - |
| Ingress Protection: | - |
| Operating Temperature: | -30°C ~ 85°C |
| Number of Ports: | 1 |
| Current Rating (Amps): | - |
| Voltage - Rated: | 20VAC |
| Mating Cycles: | 10000 |
| Shielding: | - |
