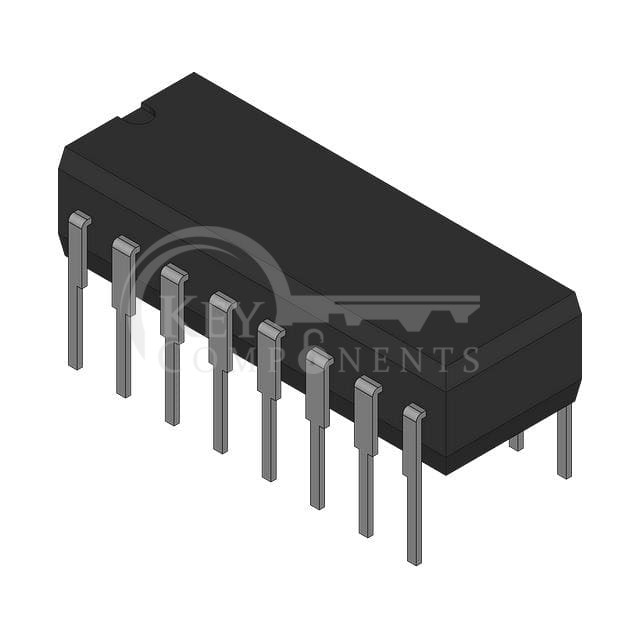

DG509ACK
| Manufacturer Part | DG509ACK |
|---|---|
| Manufacturer | Harris Corporation |
| Description | CMOS ANALOG MULTIPLEXER |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Switch Circuit: | - |
| Multiplexer/Demultiplexer Circuit: | 4:1 |
| Number of Circuits: | 2 |
| On-State Resistance (Max): | 450Ohm |
| Channel-to-Channel Matching (ΔRon): | 27Ohm |
| Voltage - Supply, Single (V+): | 44V |
| Voltage - Supply, Dual (V±): | 44V |
| Switch Time (Ton, Toff) (Max): | 1µs (Typ), 400ns (Typ) |
| -3db Bandwidth: | - |
| Charge Injection: | 6pC |
| Channel Capacitance (CS(off), CD(off)): | 5pF, 12pF |
| Current - Leakage (IS(off)) (Max): | 5nA |
| Crosstalk: | - |
| Operating Temperature: | 0°C ~ 70°C |
| Mounting Type: | Through Hole |
| Package / Case: | 16-CDIP (0.300", 7.62mm) |
| Supplier Device Package: | 16-CERDIP |
