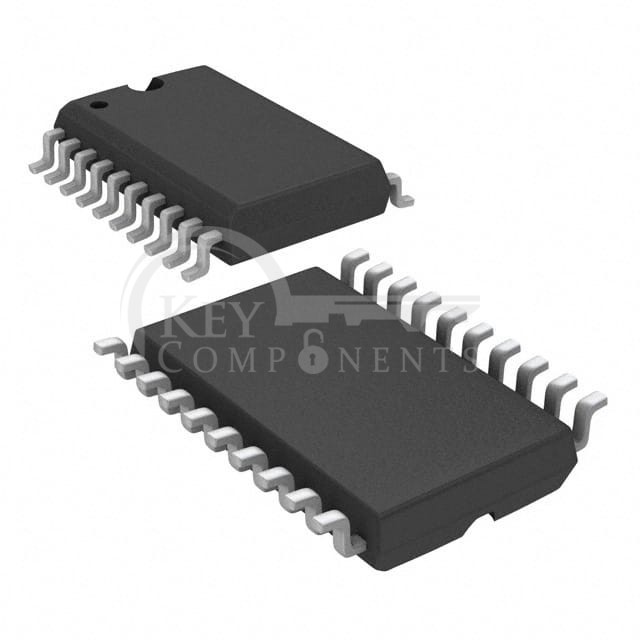

CD74HCT273M
| Manufacturer Part | CD74HCT273M |
|---|---|
| Manufacturer | Harris Corporation |
| Description | IC FF D-TYPE SNGL 8BIT 20SOIC |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Function: | Master Reset |
| Type: | D-Type |
| Output Type: | Non-Inverted |
| Number of Elements: | 1 |
| Number of Bits per Element: | 8 |
| Clock Frequency: | 50 MHz |
| Max Propagation Delay @ V, Max CL: | 30ns @ 4.5V, 50pF |
| Trigger Type: | Positive Edge |
| Current - Output High, Low: | 4mA, 4mA |
| Voltage - Supply: | 4.5V ~ 5.5V |
| Current - Quiescent (Iq): | 8 µA |
| Input Capacitance: | 10 pF |
| Operating Temperature: | -55°C ~ 125°C (TA) |
| Mounting Type: | Surface Mount |
| Supplier Device Package: | 20-SOIC |
| Package / Case: | 20-SOIC (0.295", 7.50mm Width) |
