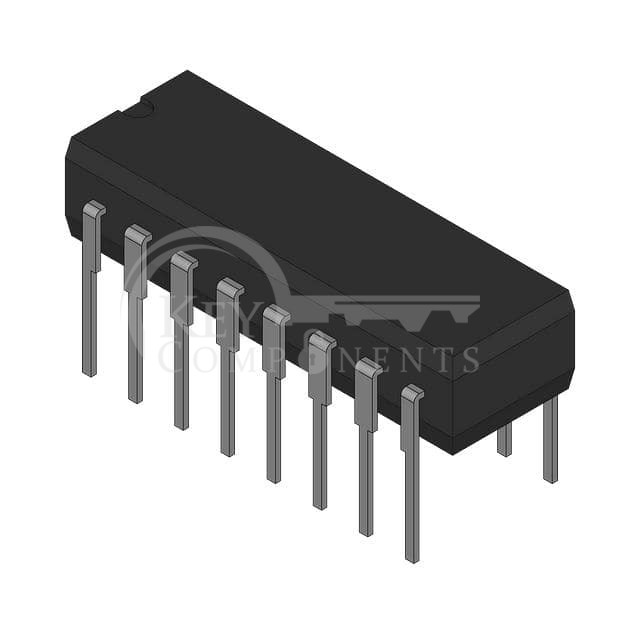

CD54ACT138F3A
| Manufacturer Part | CD54ACT138F3A |
|---|---|
| Manufacturer | Harris Corporation |
| Description | DECODER/DRIVER, ACT SERIES |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Decoder/Demultiplexer |
| Circuit: | 1 x 3:8 |
| Independent Circuits: | 1 |
| Current - Output High, Low: | 24mA, 24mA |
| Voltage Supply Source: | Single Supply |
| Voltage - Supply: | 4.5V ~ 5.5V |
| Operating Temperature: | -55°C ~ 125°C |
| Mounting Type: | Through Hole |
| Package / Case: | 16-CDIP (0.300", 7.62mm) |
| Supplier Device Package: | 16-CDIP |
