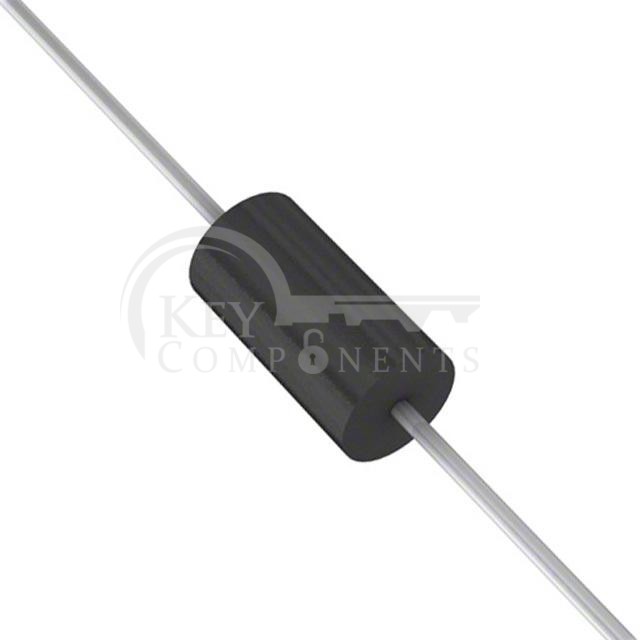

SA13A
| Manufacturer Part | SA13A |
|---|---|
| Manufacturer | Fairchild Semiconductor |
| Description | TVS DIODE 13VWM 21.5VC DO204AC |
| Category | Circuit Protection |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Type: | Zener |
| Unidirectional Channels: | 1 |
| Bidirectional Channels: | - |
| Voltage - Reverse Standoff (Typ): | 13V |
| Voltage - Breakdown (Min): | 14.4V |
| Voltage - Clamping (Max) @ Ipp: | 21.5V |
| Current - Peak Pulse (10/1000µs): | 23.7A |
| Power - Peak Pulse: | 500W |
| Power Line Protection: | No |
| Applications: | General Purpose |
| Capacitance @ Frequency: | - |
| Operating Temperature: | -55°C ~ 175°C (TJ) |
| Mounting Type: | Through Hole |
| Package / Case: | DO-204AC, DO-15, Axial |
| Supplier Device Package: | DO-204AC (DO-15) |
