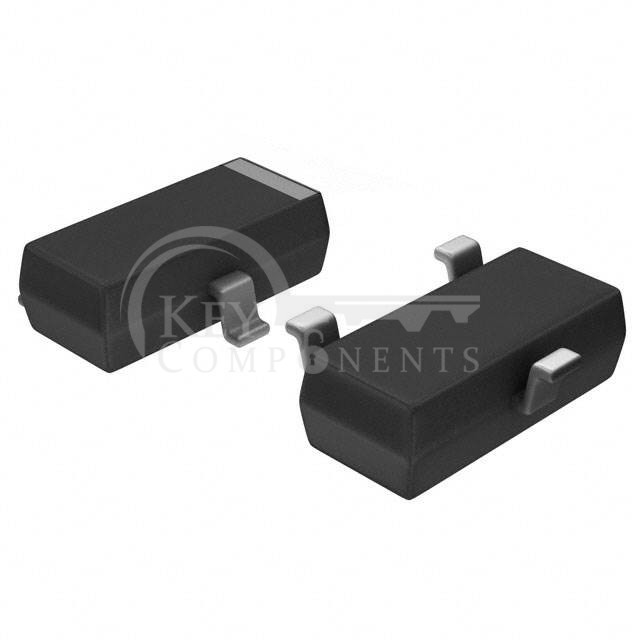

MMBZ5254B
| Manufacturer Part | MMBZ5254B |
|---|---|
| Manufacturer | Fairchild Semiconductor |
| Description | DIODE ZENER 27V 225MW SOT23-3 |
| Category | Discrete Semiconductor Products |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Voltage - Zener (Nom) (Vz): | 27 V |
| Tolerance: | ±5% |
| Power - Max: | 225 mW |
| Impedance (Max) (Zzt): | 41 Ohms |
| Current - Reverse Leakage @ Vr: | 100 nA @ 21 V |
| Voltage - Forward (Vf) (Max) @ If: | 900 mV @ 10 mA |
| Operating Temperature: | -65°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package: | SOT-23-3 |
