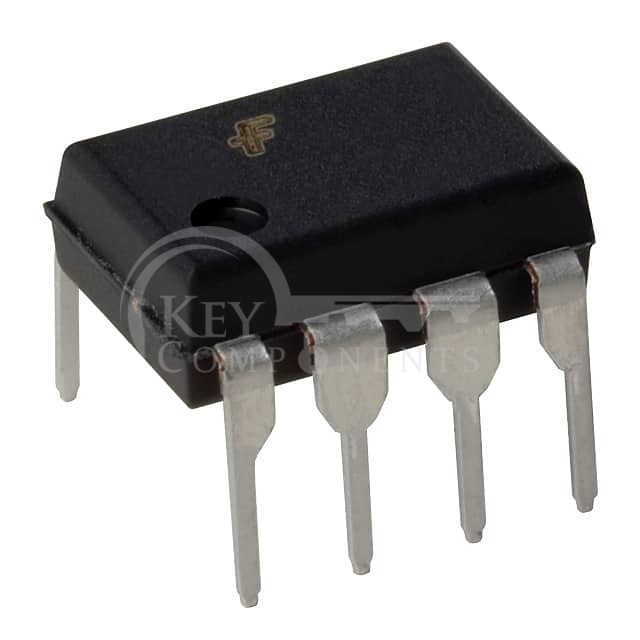

HCPL2530M
| Manufacturer Part | HCPL2530M |
|---|---|
| Manufacturer | Fairchild Semiconductor |
| Description | LOGIC IC OUTPUT OPTOCOUPLER, 2-E |
| Category | Isolators |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Number of Channels: | 2 |
| Voltage - Isolation: | 2500Vrms |
| Current Transfer Ratio (Min): | 7% @ 16mA |
| Current Transfer Ratio (Max): | 50% @ 16mA |
| Turn On / Turn Off Time (Typ): | 450ns, 500ns |
| Rise / Fall Time (Typ): | - |
| Input Type: | DC |
| Output Type: | Transistor |
| Voltage - Output (Max): | 20V |
| Current - Output / Channel: | 8mA |
| Voltage - Forward (Vf) (Typ): | 1.45V |
| Current - DC Forward (If) (Max): | 25 mA |
| Vce Saturation (Max): | - |
| Operating Temperature: | -55°C ~ 100°C |
| Mounting Type: | Through Hole |
| Package / Case: | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package: | 8-DIP |
