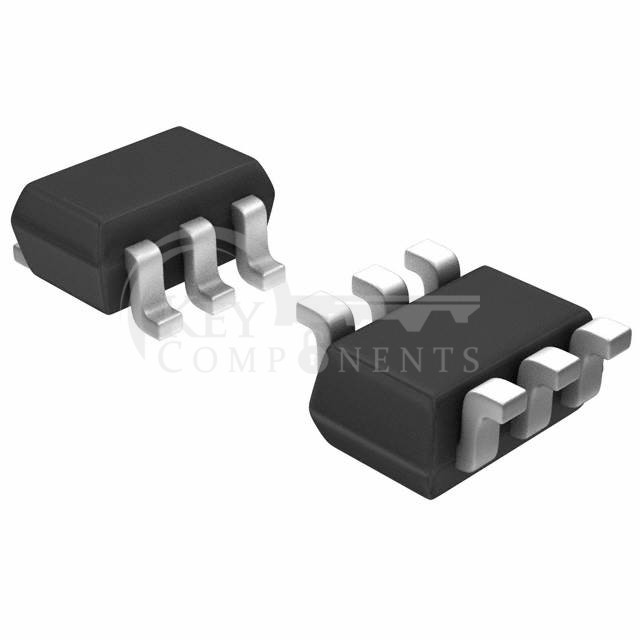

FSAU3157P6X
| Manufacturer Part | FSAU3157P6X |
|---|---|
| Manufacturer | Fairchild Semiconductor |
| Description | SINGLE-ENDED MUX, 2 CHANNEL |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Switch Circuit: | SPDT |
| Multiplexer/Demultiplexer Circuit: | 2:1 |
| Number of Circuits: | 1 |
| On-State Resistance (Max): | 15Ohm |
| Channel-to-Channel Matching (ΔRon): | 150mOhm |
| Voltage - Supply, Single (V+): | 1.65V ~ 5.5V |
| Voltage - Supply, Dual (V±): | - |
| Switch Time (Ton, Toff) (Max): | 5.2ns, 3.5ns |
| -3db Bandwidth: | 250MHz |
| Charge Injection: | 7pC |
| Channel Capacitance (CS(off), CD(off)): | 6.5pF |
| Current - Leakage (IS(off)) (Max): | 100nA |
| Crosstalk: | -54dB @ 10MHz |
| Operating Temperature: | -40°C ~ 85°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package: | SC-88 (SC-70-6) |
