FGPF4565

Manufacturer Part	FGPF4565
Manufacturer	Fairchild Semiconductor
Description	INSULATED GATE BIPOLAR TRANSISTO
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
IGBT Type:	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):	650 V
Current - Collector (Ic) (Max):	-
Current - Collector Pulsed (Icm):	170 A
Vce(on) (Max) @ Vge, Ic:	1.88V @ 15V, 30A
Power - Max:	30 W
Switching Energy:	-
Input Type:	Standard
Gate Charge:	40.3 nC
Td (on/off) @ 25°C:	11.2ns/40.8ns
Test Condition:	400V, 30A, 5Ohm, 15V
Reverse Recovery Time (trr):	-
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole

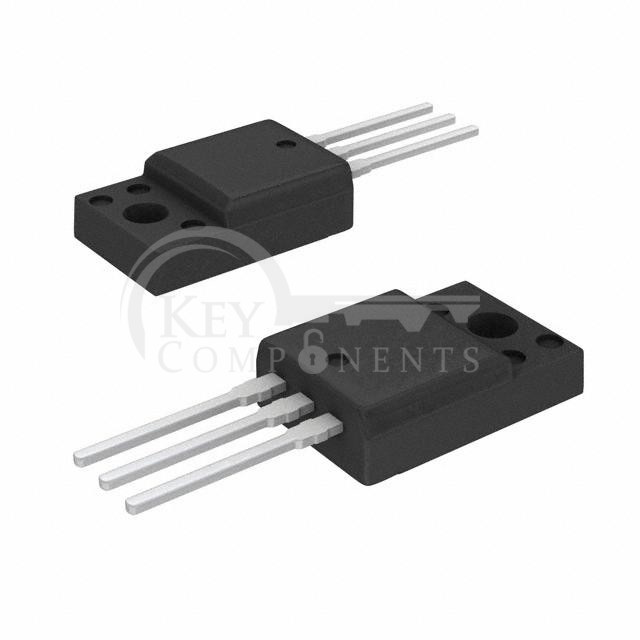

Package / Case:	TO-220-3 Full Pack
Supplier Device Package:	TO-220F-3
