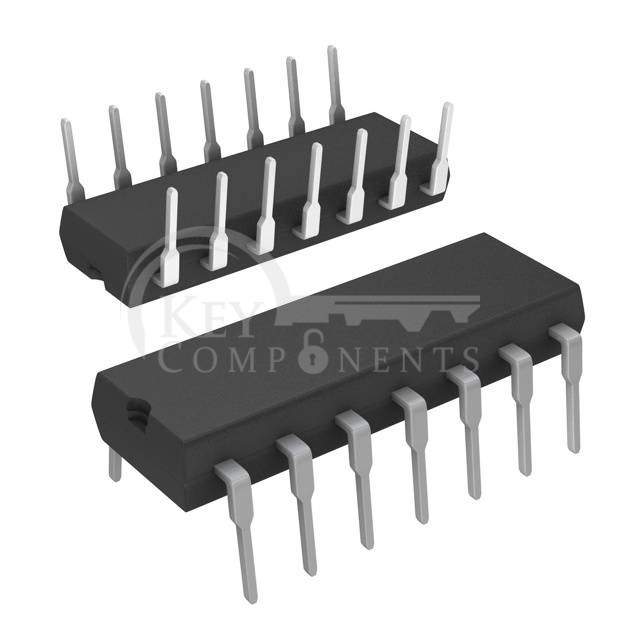

74AC32PC
| Manufacturer Part | 74AC32PC |
|---|---|
| Manufacturer | Fairchild Semiconductor |
| Description | IC GATE OR 4CH 2-INP 14DIP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Logic Type: | OR Gate |
| Number of Circuits: | 4 |
| Number of Inputs: | 2 |
| Features: | - |
| Voltage - Supply: | 2V ~ 6V |
| Current - Quiescent (Max): | 2 µA |
| Current - Output High, Low: | 24mA, 24mA |
| Logic Level - Low: | 0.9V ~ 1.65V |
| Logic Level - High: | 2.1V ~ 3.85V |
| Max Propagation Delay @ V, Max CL: | 7.5ns @ 5V, 50pF |
| Operating Temperature: | -40°C ~ 85°C |
| Mounting Type: | Through Hole |
| Supplier Device Package: | 14-DIP |
| Package / Case: | 14-DIP (0.300", 7.62mm) |
