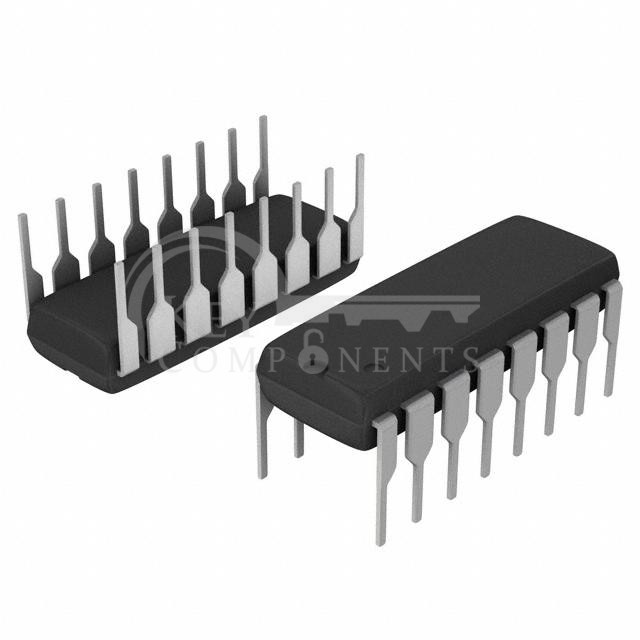

74AC109PC
| Manufacturer Part | 74AC109PC |
|---|---|
| Manufacturer | Fairchild Semiconductor |
| Description | IC FF JK TYPE DUAL 1BIT 16DIP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Function: | Set(Preset) and Reset |
| Type: | JK Type |
| Output Type: | Complementary |
| Number of Elements: | 2 |
| Number of Bits per Element: | 1 |
| Clock Frequency: | 175 MHz |
| Max Propagation Delay @ V, Max CL: | 10ns @ 5V, 50pF |
| Trigger Type: | Positive Edge |
| Current - Output High, Low: | 24mA, 24mA |
| Voltage - Supply: | 2V ~ 6V |
| Current - Quiescent (Iq): | 2 µA |
| Input Capacitance: | 4.5 pF |
| Operating Temperature: | -40°C ~ 85°C (TA) |
| Mounting Type: | Through Hole |
| Supplier Device Package: | 16-PDIP |
| Package / Case: | 16-DIP (0.300", 7.62mm) |
