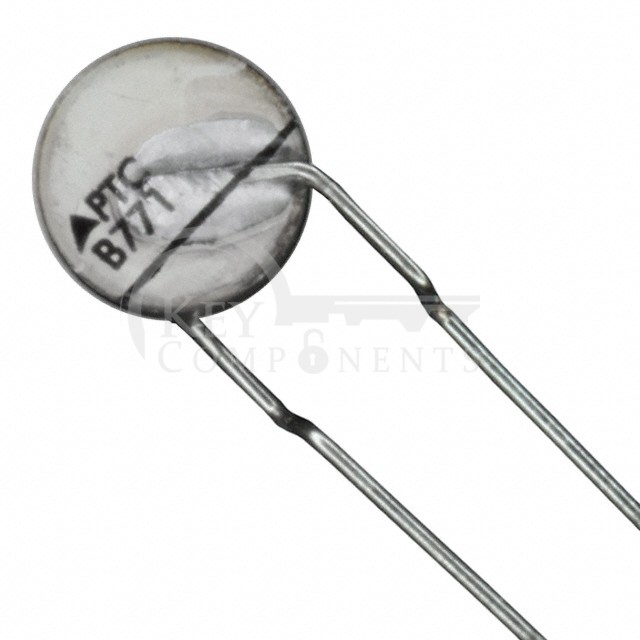

B59771B0120A070
| Manufacturer Part | B59771B0120A070 |
|---|---|
| Manufacturer | EPCOS - TDK Electronics |
| Description | PTC RESET FUSE 420V RADIAL DISC |
| Category | Circuit Protection |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Ceramic |
| Voltage - Max: | 420V |
| Current - Max: | 1.4 A |
| Current - Hold (Ih) (Max): | - |
| Current - Trip (It): | 97 mA |
| Time to Trip: | 3 s |
| Resistance - Initial (Ri) (Min): | - |
| Resistance - Post Trip (R1) (Max): | - |
| Resistance - 25°C (Typ): | 120 Ohms |
| Operating Temperature: | 0°C ~ 60°C |
| Ratings: | - |
| Mounting Type: | Through Hole |
| Package / Case: | Radial, Disc |
| Size / Dimension: | 0.335" Dia x 0.276" T (8.50mm x 7.00mm) |
| Height - Seated (Max): | 0.197" (5.00mm) |
| Thickness (Max): | - |
| Lead Spacing: | 0.197" (5.00mm) |
