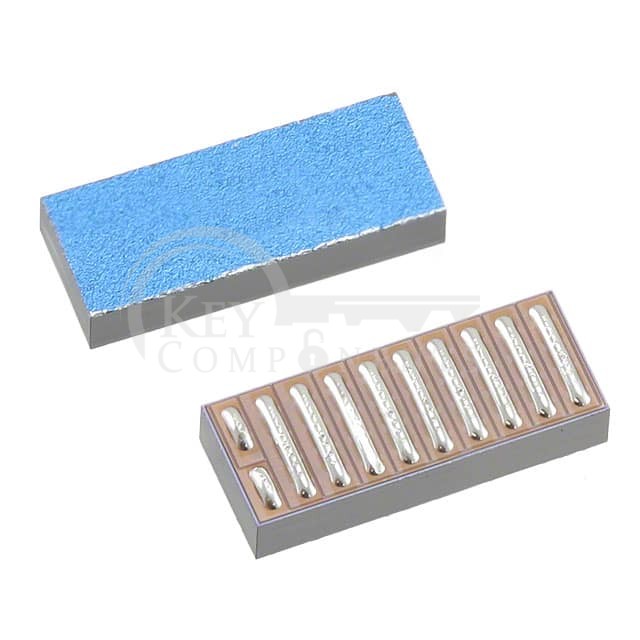

EPC2015

Manufacturer Part	EPC2015
Manufacturer	EPC
Description	GANFET N-CH 40V 33A DIE OUTLINE
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Discontinued at Digi-Key
FET Type:	N-Channel
Technology:	GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss):	40 V
Current - Continuous Drain (Id) @ 25°C:	33A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	5V
Rds On (Max) @ Id, Vgs:	4mOhm @ 33A, 5V
Vgs(th) (Max) @ Id:	2.5V @ 9mA
Gate Charge (Qg) (Max) @ Vgs:	11.6 nC @ 5 V
Vgs (Max):	+6V, -5V
Input Capacitance (Ciss) (Max) @ Vds:	1200 pF @ 20 V
FET Feature:	-
Power Dissipation (Max):	-
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	Die Outline (11-Solder Bar)
Package / Case:	Die
