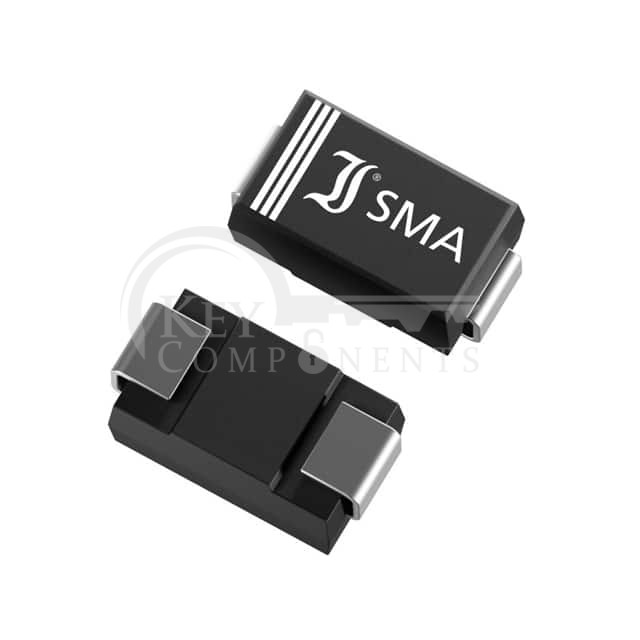

Z1SMA91
| Manufacturer Part | Z1SMA91 |
|---|---|
| Manufacturer | Diotec Semiconductor |
| Description | DIODE ZENER 91V 1W DO214AC |
| Category | Discrete Semiconductor Products |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Voltage - Zener (Nom) (Vz): | 91 V |
| Tolerance: | ±5% |
| Power - Max: | 1 W |
| Impedance (Max) (Zzt): | 130 Ohms |
| Current - Reverse Leakage @ Vr: | 1 µA @ 68 V |
| Voltage - Forward (Vf) (Max) @ If: | 1 V @ 200 mA |
| Operating Temperature: | -50°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | DO-214AC, SMA |
| Supplier Device Package: | DO-214AC (SMA) |
